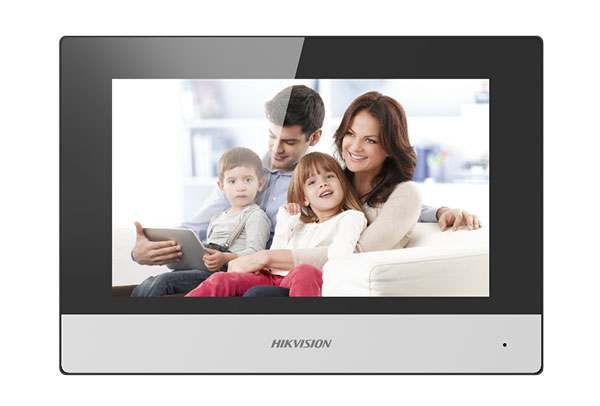

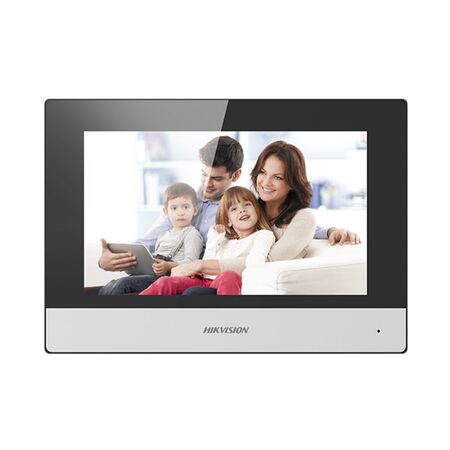

Touch Screen Android Tablet 7 Inch Hikvision
Hikvision Android tablet features a 7 inch touch screen. Ideal for video intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 7-Inch Video Intercom Monitor, Hikvision Indoor Intercom Tablet, DS-KC001 Touchscreen Intercom Station
Technical Specifications
- Model: DS-KC001
- Operating System: Android 5.1
- Display: 7-inch colourful TFT capacitive touchscreen
- Display Resolution: 1024 × 600 pixels
- Memory: 1 GB RAM
- Storage: Built-in 32 GB TF card
- Audio: Built-in microphone and loudspeaker with noise suppression and echo cancellation
- Network: 10/100 Mbps Ethernet and Wi-Fi 802.11 b/g/n
- Protocols: TCP/IP, Private SIP and RTSP
- Interfaces: RJ45, RS-485, 8 alarm inputs, TF card slot and debugging port
- Power Supply: 12 VDC
- Power Consumption: ≤5 W
- Operating Temperature: -10°C to 50°C
- Operating Humidity: 10% to 90% relative humidity
- Dimensions (H x L x W): 140mm x 200mm x 15.5mm
- Weight: 0.4193 kg
Key Features
- 7-inch touch interface for video intercom operation
- Supports remote access control and video intercom functions
- Two-way audio with echo cancellation and noise suppression
- Wired Ethernet and Wi-Fi connectivity
- Built-in 32 GB TF card for local storage
- Eight alarm inputs and one RS-485 interface
- Adjustable screen brightness and volume
- Designed for indoor video intercom and security monitoring installations
Professional Installation Requirements
- Installation and configuration should be completed by a suitably qualified security or intercom technician. Use a regulated 12 VDC supply and configure network, alarm and door-station connections in accordance with Hikvision installation instructions.
Applications
- Residential video intercom systems
- Apartment and townhouse entry systems
- Commercial access control installations
- Indoor monitoring of Hikvision door stations
- Security and visitor management installations
Standards & Compliance
- AS/NZS 62368.1: Applicable Australian/New Zealand safety standard for audio, video and information technology equipment; Australian/NZ certification for this specific model was not confirmed in the available manufacturer documentation.
Environmental Benefits
- Low operating power consumption of 5 W or less
- Local TF-card storage can reduce reliance on continuously streamed or cloud-stored video
- A dedicated indoor station can reduce the need for a separate monitor or continuously powered general-purpose device
Warranty Information
Three-year manufacturer warranty is advertised by Australian Hikvision resellers for Hikvision intercom products, subject to authorised-channel terms and conditions.
Available Now
Available through Hikvision and authorised Australian security and intercom distributors; confirm current stock and regional compatibility before ordering.
