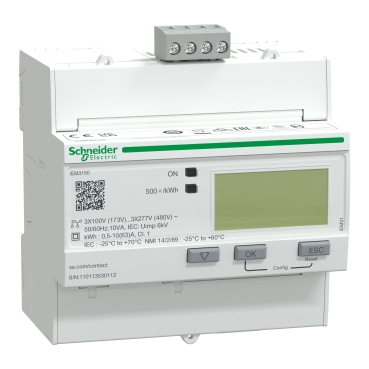

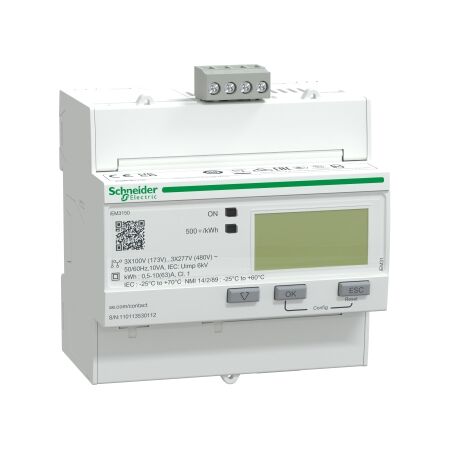

Triphase KWH Meter CT Modbus IO Multi-Tariff 90x65x54mm Clipsal
The Triphase kWh Meter CT Modbus IO is designed for precise energy monitoring in commercial and industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Triphase kWh Meter CT Modbus IO | Three-Phase Measurement | Modbus RTU Communication | Multi-Tariff Capability | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9MEM3255-NMI
Alternatively Known As: IEM3255 energy meter, Acti9 energy meter, three-phase Modbus kWh meter, Clipsal CT Modbus meter, SCHA9MEM3255-NMI
Technical Specifications
- Measurement: Three-phase, four-wire (3P+N)
- Input: CT (current transformer) compatible
- Communication: Modbus RTU (RS485)
- Digital Inputs/Outputs: 1 digital input, 1 digital output
- Multi-tariff: Yes
- Display: LCD
- Accuracy: Class 1 (IEC 62053-21)
- Mounting: DIN rail
- Voltage: 230/400V AC
- Frequency: 50/60Hz
- NMI Approval: Yes
- Dimensions (H x L x W): 90mm x 65mm x 54mm
- Weight: 0.35 kg
Key Features
- Three-phase energy meter with CT (current transformer) input
- Supports Modbus communication protocol for remote monitoring
- 1 digital input and 1 digital output for flexible integration
- Multi-tariff capability for advanced billing and energy management
- NMI approved for use in Australia
- Compact DIN rail mounting for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Commercial and industrial energy monitoring
- Sub-metering in multi-tenant buildings
- Energy management systems
- Load analysis and optimization
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring for improved efficiency and reduced wastage
- Supports energy management initiatives to lower carbon footprint
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Triphase kWh Meter CT Modbus IO SCHA9MEM3255-NMI is available for immediate purchase. Ideal for commercial and industrial energy monitoring and management applications.
