Triple HDMI to DVB-IP Encoder | H.264/H.265 | Real-Time Streaming | Multi-Protocol by Matchmaster
Triple HDMI to DVB-IP encoder with H.264/H.265 compression and real-time streaming—ideal for broadcasting and media production. Built for professional use, with support for multiple streaming protocols and efficient energy consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

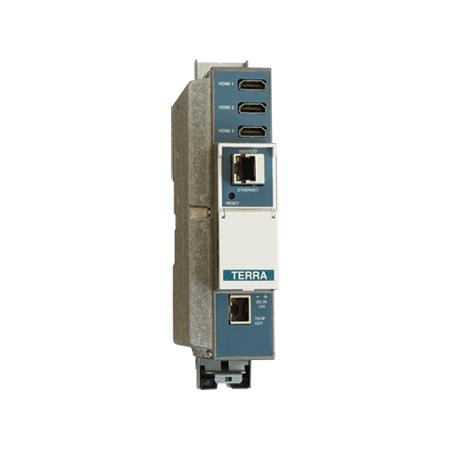

Product Name/Title: Triple HDMI® to DVB-IP Encoder
Brand: Matchmaster
SKU: 14MM-MHI430
Alternatively Known As: HDMI to IP encoder, Triple HDMI encoder, DVB-IP encoder, IPTV encoder, H.264 HDMI encoder
Technical Specifications
- Video input signal type: HDMI
- Video coding: MPEG-4 AVC/H.264, Baseline profile 4.0
- Input resolution: up to 1920x1080-60p
- Output resolution: up to 1920x1080-30p
- Audio input signal type: HDMI
- Audio standards: MPEG-1 Layer II, AAC
- Audio bit rate: 64, 96, 128, 192, 256, 320, 384 kbps
- H.264 Encoder bit rate: 4 - 11 Mb/s adjustable
- Configurable parameters: Service Name, Service ID, Video PID, Audio PID, PMT PID, PCR PID
- IP output standard: IEEE802.3 10/100 Base T
- IP output bit rate: up to 100 Mbps
- Transmission protocols: UDP/RTP
- Multicast support: Yes
- SPTS support: Yes
- Supply voltage: 12 V ±1 V
- Current consumption: 700 mA max.
- Operating temperature: 0°C to +50°C
- Dimensions (H x L x W): 48.5mm x 112mm x 198mm
- Weight: 0.9 kg
Key Features
- Triple HDMI® to IP encoder
- SPTS IP streaming supporting UDP and RTP transmission protocols
- MPEG-4 AVC/H.264 Encoding with Baseline profile 4.0
- Web control for ease of setup and SNMP agent
- DIN rail or wall mounting
- Input resolution up to 1080p 60Hz with maximum 1080p 30Hz output
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper integration with IPTV and DVB systems.
Applications
- IPTV systems
- Digital video broadcasting
- HDMI to IP streaming
- Integration with TERRA MIX440 or MI520 modulators
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Efficient digital encoding reduces bandwidth usage and energy consumption in IPTV systems.
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster for specific warranty details.
Available Now
The Matchmaster Triple HDMI® to DVB-IP Encoder MHI430 is available now for immediate purchase. Ideal for IPTV and digital broadcasting applications.
