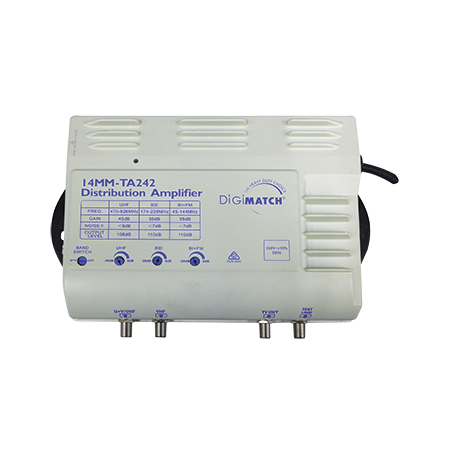

UHF/VHF Distribution Amplifier 45dB | Internal Power Supply | Low Noise by Matchmaster

SKU: 14MM-TA242
$524.90 List price: $635.30
+
UHF/VHF distribution amplifier with 45dB gain and internal power supply—ideal for enhancing TV signal reception in homes and offices. Built for reliable performance, with low noise and linear amplification.

Product Name/Title: 45dB UHF/VHF Terrestrial Distribution Amplifier with Internal Power Supply

Brand: Matchmaster

SKU: 14MM-TA242

Alternatively Known As: Terrestrial TV Distribution Amplifier, UHF/VHF Signal Amplifier, Mast Head Amplifier

Technical Specifications
  • Number of Inputs: 2
  • Frequency Range: 47-144MHz, 175-230MHz, 470-862MHz
  • Number of Outputs: 1
  • Amplification Bands: BI + FM, B III, UHF
  • Gain: 35/35/45dB
  • Gain Adjustment: 20dB
  • Output Level (42Ch): 108dBµV
  • Noise Figure: <8dB
  • Mains Voltage: 240V
  • Test Points: Output -30dB
  • Dimensions (H x L x W): 50mm x 120mm x 150mm
  • Weight: 0.5 kg
Key Features
  • Separate gain controls for band 1 & FM, band 3 & UHF
  • Metal casing for excellent heat dissipation
  • Switchable inputs for UHF & VHF or combination TV antenna
  • Test points with -30dB output
  • Includes internal power supply
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended to ensure optimal signal distribution and compliance with electrical safety standards.
Applications
  • Residential: TV antenna signal distribution
  • Commercial: Broadcast and communication signal amplification
  • General: Terrestrial TV signal distribution for multiple outlets
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Reduces signal loss and interference, improving energy efficiency of TV reception systems
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Matchmaster 45dB UHF/VHF Terrestrial Distribution Amplifier is available now for immediate purchase. Ideal for residential and commercial terrestrial TV signal distribution applications.

Brochure (14mm-ta242_brochure.pdf, 520 Kb) [Download]

Manual (14mm-ta242_manual.pdf, 462 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
