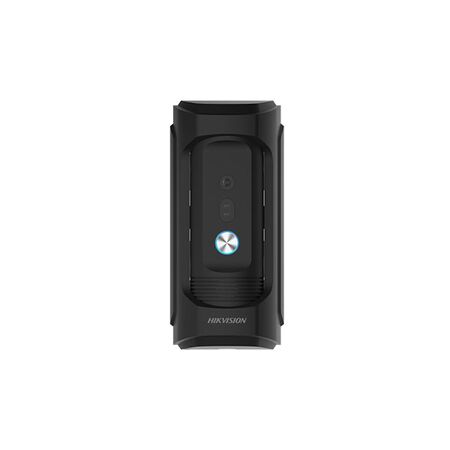

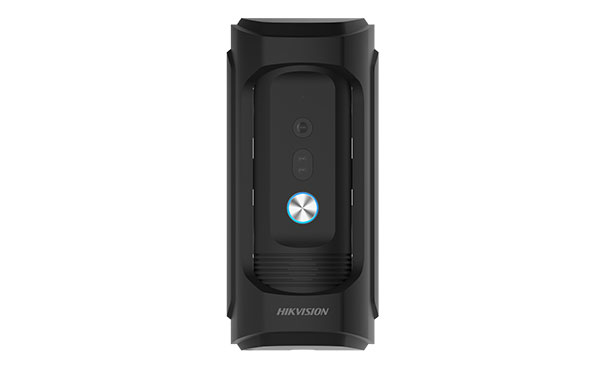

Vandal Resistant Door Station Hikvision
Hikvision vandal resistant door station for intercom systems. Ideal for building entry points in intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision vandal-resistant video doorbell, IP video intercom door station, outdoor video door station
Technical Specifications
- Model: DS-KB8113-IME1
- Camera: 2MP HD camera with infrared supplementary lighting
- Video: 1080p main stream at up to 30 fps
- Field of View: 88° horizontal, 45° vertical, 106° diagonal
- Audio: Two-way audio with noise suppression and echo cancellation
- Call Interface: One mechanical call button
- Network: 10/100 Mbps Ethernet with standard IEEE 802.3af PoE
- Additional Power: 12 VDC
- Access Control: One door-lock relay output
- Alarm Interface: One alarm input
- Protection Rating: IP65 weather and dust protection; IK09 impact resistance
- Power Consumption: Less than 10 W
- Operating Temperature: -30°C to 50°C
- Operating Humidity: 10% to 90% relative humidity, non-condensing
- Construction: Metal vandal-resistant housing
- Installation: Surface mounting with protective shield and mounting plate
- Dimensions (H x L x W): 161.85mm x 53.2mm x 74.13mm
- Weight: 0.795 kg
Key Features
- 2MP HD camera for visitor identification
- Infrared supplementary lighting for low-light viewing
- Standard PoE simplifies network and power cabling
- 12 VDC power input provides an alternative to PoE
- One-button visitor calling
- Two-way communication with noise suppression and echo cancellation
- Remote live view, visitor calling and door release through Hik-Connect when configured
- Integrated door-lock relay output
- IP65-rated for outdoor use
- IK09 impact protection for vandal-resistant installations
- Web-based device configuration
Professional Installation Requirements
- Installation should be performed by a qualified security or access-control technician. Configure the door station with a compatible Hikvision indoor station, network infrastructure and electric locking hardware. Any associated mains-powered PoE equipment or 230 V wiring must be installed by a licensed electrician in accordance with applicable electrical requirements.
Applications
- Residential villa and townhouse entry points
- Apartment and multi-dwelling building entrances
- Commercial and office access points
- Government and institutional building entrances
- Construction site entry control
- Outdoor video intercom and door-release systems
Standards & Compliance
- AS/NZS IEC 60839.11.1:2019 – relevant standard for electronic access control systems and components; product-specific compliance declaration not located
- AS/NZS 62676.1.2:2020 – relevant video transmission standard for connected security video systems; product-specific compliance declaration not located
Environmental Benefits
- PoE operation reduces the need for separate power cabling and associated installation materials
- Power consumption below 10 W supports comparatively low operating energy use
- Metal vandal-resistant construction is suited to long service life and reduced replacement waste
- Low-voltage operation avoids direct mains connection at the door station
Warranty Information
Warranty is dependent on the Australian supply channel and purchase terms. Hikvision Australia’s published extended five-year programme is limited to specified premium project-oriented product series and does not list this door station. Confirm the applicable warranty period with the authorised Australian distributor before purchase.
Available Now
Available through Hikvision and authorised Australian security, access-control and electrical distributors.
