Variable Speed Drive 400V 8.7A | 4kW Output | IP20 Rated by NHP
Variable speed drive with 400V input and 8.7A output—ideal for industrial motor control. Built for energy efficiency, with dynamic braking and PID control for precise speed management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

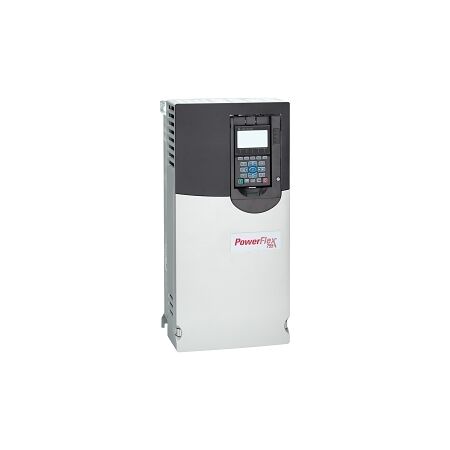

Product Name/Title: Allen-Bradley PowerFlex 755 VSD 400V IP20 8.7A 4kW ND/HD Frame 2
Brand: NHP
SKU: 20G11NC8P7JA0NNNNN
Alternatively Known As: PowerFlex 755 VSD, Variable Speed Drive, Frequency Converter
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 400 V
- Nominal output power AC: 4 kW
- Nominal output current: 8.7 A
- KW rating normal duty: 4 kW
- KW rating heavy duty: 2.2 kW
- Dynamic braking transistor: Yes
- Control characteristic: PID
- EMC version: Yes
- Integrated motion function: No
- Suitable for safety functions: Yes
- Contains keypad: No
- Frame size: 2
- Degree of protection: IP20
- Operating temperature: -20-60 °C
- Storage temperature: -40-70 °C
- Dimensions (H x L x W): 424.2mm x 212mm x 135mm
- Weight: 8 kg
Key Features
- 3-phase input with a nominal voltage of 400V.
- Nominal output power of 4 kW and output current of 8.7 A.
- Dynamic braking transistor included.
- PID control characteristic for precise speed control.
- Suitable for safety functions.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Motor control applications
- Commercial: HVAC systems, pumps, and fans
Standards & Compliance
- Complies with relevant Australian standards for electrical equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Allen-Bradley PowerFlex 755 Variable Speed Drive is available now for immediate purchase. Ideal for industrial and commercial motor control applications.
