Variable Speed Drive ATV12 | 2.2kW 3hp | 200-240V 1ph | Heat Sink by Clipsal
Variable speed drive with 2.2kW power and 200-240V input—ideal for industrial applications. Built for energy efficiency, with Modbus communication and integrated EMC filter.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

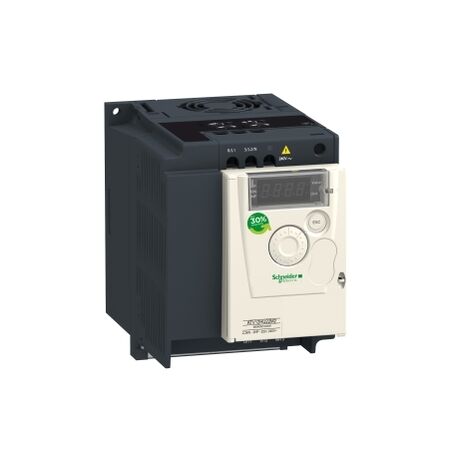

Product Name/Title: Altivar 12, Variable speed drive ATV12, 2.2kW, 3hp, 200..240V, 1ph, with heat sink
Brand: Clipsal
SKU: ATV12HU22M2
Alternatively Known As: Variable Frequency Drive, VFD, Motor Speed Controller
Technical Specifications
- Power Rating: 2.2kW (3hp)
- Input Voltage: 200-240V, 1 phase
- Nominal Output Current: 10A
- Speed Range: 0.5...400 Hz
- Communication Port: Modbus
- Protection Type: Overvoltage, undervoltage, overcurrent, overheating, short-circuit protection
- Operating Temperature: -10...60 °C
- EMC Compliance: Yes
- Dimensions (H x L x W): 142mm x 156mm x 105mm
- Weight: 1.4 kg
Key Features
- Cabinet mount design with integrated EMC filter.
- Modbus communication protocol for easy integration.
- IP20 protection rating for indoor use.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Suitable for various industrial applications requiring variable speed control.
Standards & Compliance
- Complies with UL 508, UL 61800-5-1, IEC 61800-5-1, IEC 61800-3.
Environmental Benefits
- Energy-efficient design contributes to reduced power consumption.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Altivar 12 Variable Speed Drive ATV12 is available now for immediate purchase. Ideal for industrial applications requiring variable speed control.
