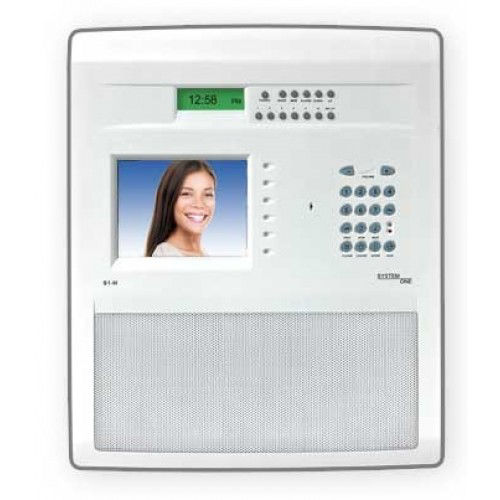

Video Intercom Master Station 5.6 Inch LCD DAB+ FM Radio iCentral
iCentral video intercom master station features a 5.6 Inch TFT LCD, DAB+ and FM radio and System One compatibility. Ideal for music and video intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: iCentral M250 Video Master Station, System One Video Intercom Master, DAB+ Intercom Master Station
Technical Specifications
- Model: M250, part number 106-911
- Display: 5.6-inch colour TFT LCD with graphical user interface
- Radio: DAB+ digital radio and FM radio
- Compatibility: iCentral System One door and room stations
- Video Inputs: 3 inputs for door stations, CCTV cameras or TV sources
- Video Output: Output for an additional video monitor
- Audio Input: Auxiliary input for iPod, CD or MP3 players
- Automation Outputs: 2 programmable auxiliary outputs
- Power Supply: 13.8 V DC system supply
- Mounting: Traditional-size master station for retrofit installations
- Finish: White
- Dimensions (H x L x W): 388mm x 91.5mm x 322mm
- Weight: 2.32 kg
Key Features
- Video intercom communication and door-station monitoring
- 5.6-inch colour TFT LCD display
- Integrated DAB+ digital radio and FM tuner
- On-screen graphical user interface with programmable settings
- Compatible with System One D200 video door stations
- Three video inputs for intercom, CCTV or TV sources
- Auxiliary music input for external audio devices
- Two programmable automation outputs
- Video output for connection to an additional monitor
- Designed for retrofit replacement of compatible Valet intercom master stations
Professional Installation Requirements
- Installation should be completed by a suitably qualified low-voltage security or communications technician. The master station requires connection to the System One cabling, compatible door or room stations and a 13.8 V DC power supply. Where mains-powered equipment or fixed wiring is installed, comply with applicable Australian electrical installation requirements.
Applications
- Residential video intercom systems
- Home entry and door-station monitoring
- System One music and intercom installations
- Retrofit replacement of compatible Valet intercom master stations
- Small commercial access communication systems
Standards & Compliance
- AS/NZS 62368.1:2018 — relevant audio/video and information and communication technology equipment safety standard; specific SKU certification was not published
- AS/NZS 3820 — applicable essential safety requirements framework for low-voltage electrical equipment
Environmental Benefits
- Supports retrofit reuse of existing compatible intercom infrastructure, reducing replacement of complete systems
- Durable fixed-installation equipment can reduce electronic waste compared with frequent replacement of portable devices
- Auxiliary audio and radio functions consolidate intercom and distributed-audio equipment into one master station
Warranty Information
iCentral and Valet intercom and security products are covered by a two-year warranty against defects from the date of purchase, unless otherwise specified.
Available Now
Available through iCentral and authorised Australian distributors, subject to current distributor stock.
