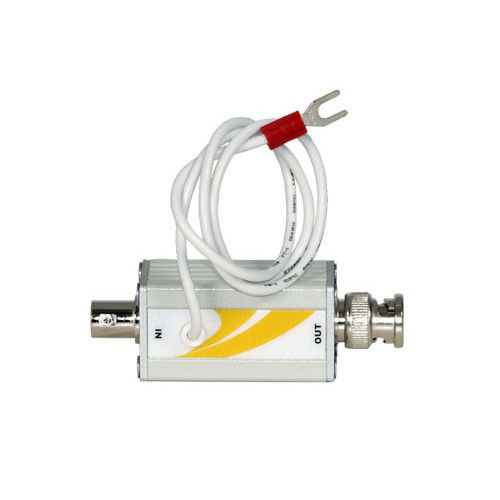

Video Power Surge Protector 50K Amp Max BNC In Out Ness

BRAND: Ness
SKU: 100-707
$60.20 List price: $80.20
+ −
30 Days Return Electricians Unlock Trade Access
Ness video power surge protector features a 50K Amp maximum rating, 100ns attack time and BNC in and out. Ideal for protecting CCTV video equipment.

Alternatively Known As: Ness CCTV Video Surge Protector, BNC Video Surge Protector, Coaxial CCTV Surge Protector

Technical Specifications
  • Maximum Surge Current: 50,000 A
  • Surge Protection Attack Time: 100 ns
  • Video Connection: BNC input and BNC output
  • Return Loss: 16 dB
  • Insertion Loss: Less than 0.2 dB
  • Application: External-mounted CCTV camera protection
  • SKU: 100-707
  • Dimensions (H x L x W): 25mm x 70mm x 25mm
  • Weight: 0.1 kg
Key Features
  • Protects CCTV video equipment against power surges
  • Suitable for externally mounted CCTV cameras
  • High 50,000 A maximum surge current rating
  • Fast 100 ns surge protection attack time
  • Inline BNC input and output connections
  • Low insertion loss of less than 0.2 dB
  • 16 dB return loss for minimal signal degradation
Professional Installation Requirements
  • Installation should be completed by a suitably qualified CCTV or electrical installer. Ensure the protector is correctly positioned, bonded and earthed as part of the overall lightning and surge protection design, with installation practices aligned to AS/NZS 1768 where applicable.
Applications
  • External CCTV camera installations
  • Analogue or coaxial video surveillance systems
  • CCTV cable runs exposed to lightning or switching surges
  • Security camera systems requiring inline BNC surge protection
Environmental Benefits
  • Passive device requires no operating power during normal use
  • Surge protection can help extend the service life of connected CCTV equipment and reduce electronic waste
  • Compact construction uses fewer materials than replacing damaged cameras or video equipment
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Warranty claims are subject to Ness Corporation terms and conditions.

Available Now

Available through Ness Corporation and authorised Australian security equipment distributors.
