Trade Discount 25%

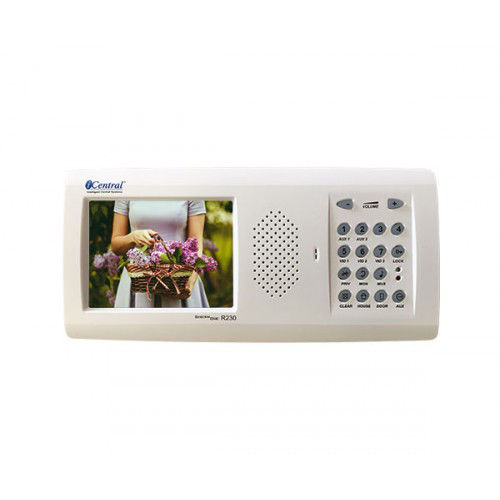

Video Room Station 5 Inch LCD White iCentral
iCentral video room station features a 5 Inch LCD screen and a white finish. Ideal for video intercom installs with audio and video answering.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: iCentral System One Video Room Station, R230 Video Intercom Room Station, 106-914
Technical Specifications
- Display: 5-inch colour TFT LCD
- Display Resolution: 640 x 480 pixels
- Video Format: PAL/NTSC analogue video
- Video Input: CVBS, 1 Vp-p, 75 ohm
- Power Supply: 13.8 V DC
- Current Consumption: 330 mA, 450 mA peak
- Cabling: CAT5 and RG59 or Valet cable
- Maximum Cable Length: 25 m from master or central connection point
- Compatibility: iCentral System One door, master and room stations
- Finish: White
- Dimensions (H x L x W): 130mm x 265mm x 30mm
- Weight: 0.8 kg
Key Features
- Two-way audio and video answering for door intercom systems
- 5-inch colour LCD for viewing visitors and video sources
- Supports operation with or without a master station
- Digital volume control with separate music and communication settings
- Adjustable keypad backlighting
- Video monitoring and selectable video inputs when used with a master station
- Lock-release control where an optional electric lock or gate is connected
- Includes recess-mount wall box
- Standard room-station footprint for retrofit installations
- Designed and made in Australia
Professional Installation Requirements
- Installation should be performed by a suitably qualified security, communications or electrical technician. The station requires low-voltage DC power, structured/intercom cabling and integration with compatible door, master and lock-release equipment. Follow the manufacturer's installation instructions and applicable Australian wiring and customer-cabling requirements.
Applications
- Residential video intercom systems
- Front-door visitor answering
- Multi-room home communication systems
- Video monitoring from compatible iCentral System One door stations
- Retrofit replacement of compatible Valet or iCentral room stations
Standards & Compliance
- AS/NZS 3000:2018 - applicable to associated electrical installations and power-supply wiring
- AS/CA S009:2020 - applicable where customer telecommunications cabling is installed
- AS/NZS IEC 60839.11.1:2019 - relevant where the intercom forms part of an electronic access-control system; product-specific certification was not identified
Environmental Benefits
- Low-voltage 13.8 V DC operation can reduce electrical energy use compared with mains-powered room equipment
- Retrofit-compatible standard footprint can reduce wall rework and associated installation waste
- Durable, serviceable intercom hardware can extend system life and reduce replacement waste
Warranty Information
iCentral/Valet warranty coverage applies to domestic household use; registering the product provides one additional year of warranty at no charge. Contact the manufacturer for commercial or industrial warranty arrangements.
Available Now
Available through iCentral/Valet and authorised Australian distributors.
