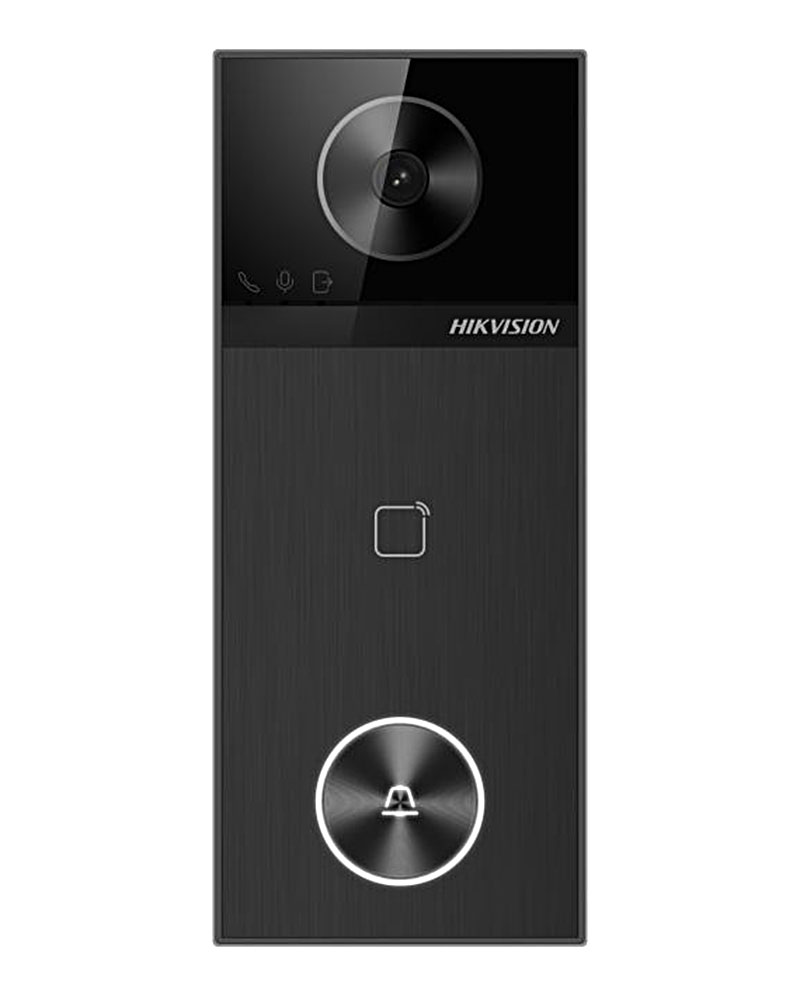

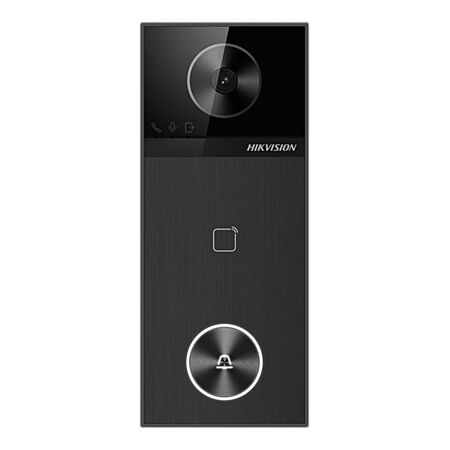

Villa Door Station 4MP Hikvision
Hikvision villa door station features 4MP resolution. Ideal for villa intercom installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 4MP IP Villa Door Station, Hikvision Video Intercom Door Station, Outdoor IP Doorbell Station
Technical Specifications
- Camera Resolution: 4MP, up to 2688 × 1520 pixels
- Viewing Angle: 150° horizontal
- Video Compression: H.264 and H.265
- Connectivity: Wi-Fi 6 and 10/100 Mbps Ethernet
- Power Supply: 12 VDC or IEEE 802.3at standard PoE
- Power Consumption: Less than 10 W
- Lock Control: Two relays, maximum 30 VDC 2 A
- Storage: TF card support up to 128 GB
- Ingress Protection: IP65
- Operating Temperature: -40 °C to 60 °C
- Installation: Surface mounting
- Materials: Plastic housing, glass viewing window and aluminium alloy metal panel version
- Dimensions (H x L x W): 69mm x 24.7mm x 164mm
- Weight: 0.273 kg
Key Features
- 4MP camera for high-resolution visitor identification
- 150° horizontal viewing angle
- Wi-Fi 6 and standard IEEE 802.3at PoE connectivity
- Supports card, Bluetooth, Hik-Connect and indoor-station unlocking
- Controls up to two locks
- Video recording and playback through Hik-Connect or PC web access
- Built-in microphone and speaker for two-way communication
- TF card support up to 128 GB
- Outdoor-rated IP65 housing
- One physical call button with three status indicators
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified security or communications installer. Low-voltage power, PoE networking, lock wiring and access-control connections must be installed in accordance with manufacturer instructions and applicable Australian wiring requirements.
Applications
- Residential villa intercom systems
- Single-family home entrance communication
- Outdoor visitor identification and two-way audio
- Residential access control with electronic lock release
- Small commercial or multi-tenant entrance systems
Standards & Compliance
- Applicable: AS/NZS IEC 60839.11.1:2019 for electronic access control systems and components
- Applicable: AS/NZS 62368.1:2018 for audio, video, information and communication technology equipment safety
- Installation reference: AS/NZS 3000:2018 for electrical installations and wiring practices
Environmental Benefits
- PoE operation and less-than-10 W power consumption can reduce cabling and power requirements compared with separately powered network equipment
- IP65 outdoor protection helps extend service life and reduce premature replacement waste
- Aluminium alloy and glass components can support material recovery at end of life where suitable recycling facilities are available
Warranty Information
Hikvision Australia warranty support is provided for genuine products purchased through authorised Australian distribution channels. The specific warranty period for this villa door station should be confirmed against the applicable product warranty terms and purchase documentation.
Available Now
Available through Hikvision and authorised Australian security, access-control and communications distributors.
