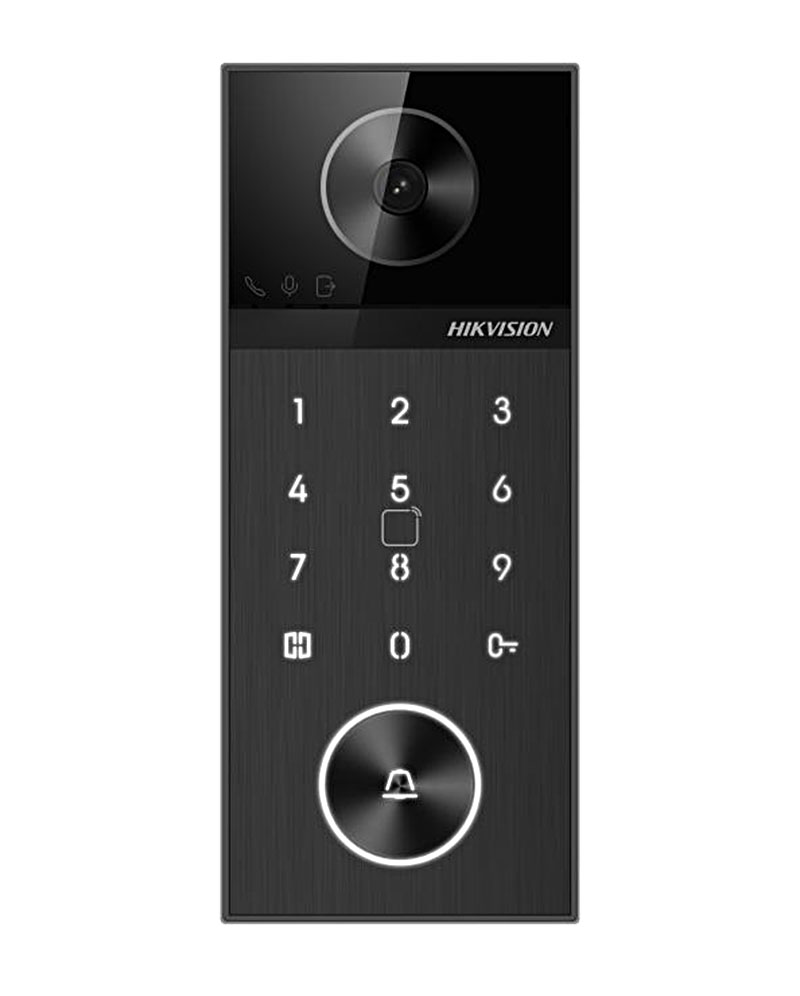

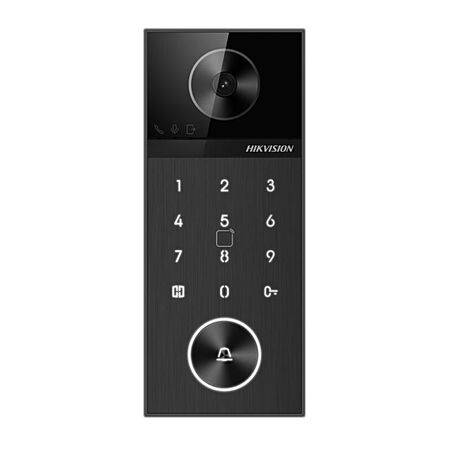

Villa Door Station 4MP with Keypad Hikvision
Hikvision villa door station features 4MP resolution and a keypad. Ideal for villa intercom installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4MP Villa Intercom Door Station, Hikvision IP Video Door Station with Codepad, Hikvision DS-KV6124-WBE1
Technical Specifications
- Camera Resolution: 4MP, up to 2688 × 1520 pixels
- Viewing Angle: 150° horizontal, 75° vertical
- Video Compression: H.264, H.265 and MJPEG
- Night Illumination: IR light up to 3 m
- Access Methods: PIN code, Mifare card, Bluetooth, Hik-Connect and indoor station
- Card Reader: 13.56 MHz Mifare, reading distance 2–2.5 cm
- User Capacity: Up to 2,000 users
- Card Capacity: Up to 10,000 cards
- Lock Control: 2 relay outputs, maximum 30 VDC, 2 A
- Network Interface: 10/100 Mbps RJ45
- Storage: TF card support up to 128 GB
- Power Supply: 12 VDC, 1.2 A or IEEE 802.3at PoE
- Power Consumption: Less than 10 W
- Ingress Protection: IP65
- Operating Temperature: -40°C to 60°C
- Installation: Surface mounting
- Material: Plastic front and rear shells with glass viewing panel
- Dimensions (H x L x W): 164mm x 24.7mm x 69mm
- Weight: 0.273 kg
Key Features
- Integrated 4MP camera with 150° wide-angle view
- Built-in keypad for PIN-based access control
- Supports Mifare cards, Bluetooth and Hik-Connect mobile access
- Controls two electric locks or gates
- Two-way audio with built-in microphone and loudspeaker
- H.265 video compression and video recording playback
- IP65-rated enclosure for outdoor installation
- Supports standard IEEE 802.3at PoE or 12 VDC power
- Tamper input, exit button input and door contact input
- Compatible with Hikvision indoor stations and Hik-Connect
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or access-control installer. Network cabling, lock wiring, low-voltage power and any mains-connected PoE equipment must be installed in accordance with applicable Australian electrical and communications requirements.
Applications
- Residential villa intercom systems
- Single-home entrances and pedestrian gates
- Small commercial access-control installations
- Remote visitor communication and door release
- Outdoor entry points requiring keypad, card or Bluetooth access
Standards & Compliance
- Applicable reference: AS/NZS 62676.1.1:2020 for general video surveillance system requirements
- Applicable reference: AS/NZS 62676.1.2:2020 for video transmission performance
- Applicable reference: AS/NZS IEC 60839.11.1:2019 for electronic access-control system components
- Associated electrical installations should follow AS/NZS 3000:2018 and applicable amendments
Environmental Benefits
- PoE operation and power consumption below 10 W can reduce wiring and energy requirements
- IP65 outdoor protection helps extend service life and reduce replacement waste
- H.265 compression can reduce network bandwidth and associated storage requirements
- Durable construction supports longer operating life in outdoor access-control applications
Warranty Information
Hikvision warranty support is available through authorised Australian distribution channels. The applicable warranty period is subject to the product warranty terms and purchase documentation; Hikvision's Australian RMA policy requires proof of purchase and an eligible warranty period.
Available Now
Available through Hikvision and authorised Australian security, access-control and electrical distributors; stock status may vary by distributor.
