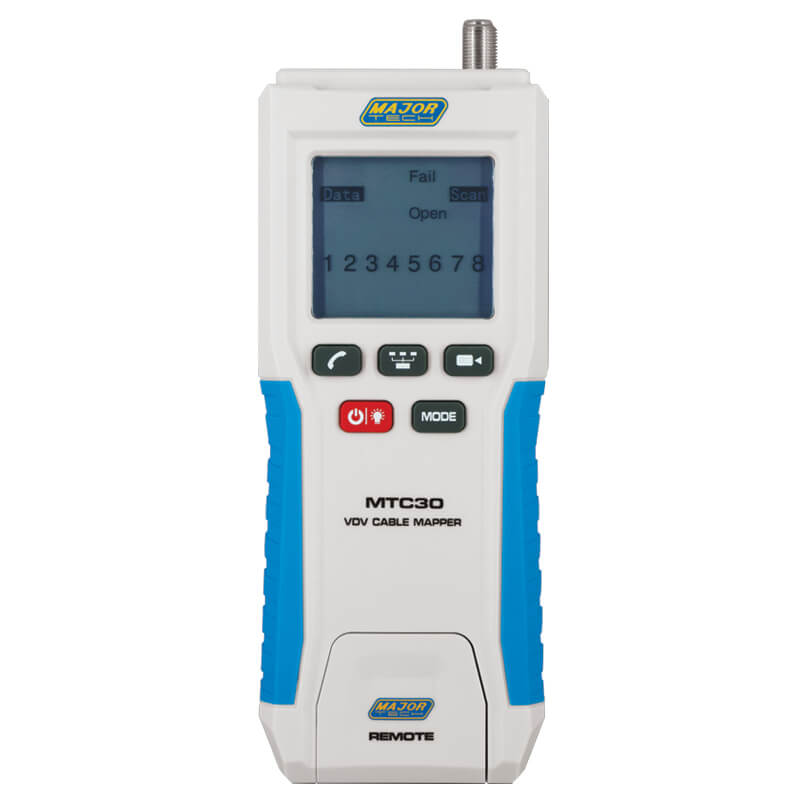

Voice Data Video Cable Mapper | 305m Range | Backlit LCD Display & Tone Generator by Majortech

BRAND: Major Tech

SKU: MTC30

$152.80 List price: $196.60

+ −

30 Days Return Delivery Options

The Voice Data Video Cable Mapper is designed for efficient cable testing and mapping, featuring a 305m maximum cable length and a large backlit LCD display for clear fault descriptions. Ideal for telecommunications, networking, and video system maintenance, it includes a built-in tone generator for quick cable location.

Description

Product Name/Title: Voice Data Video Cable Mapper | 305m Range | Backlit LCD Display & Tone Generator by Majortech

Brand: Majortech

SKU: MTC30

Alternatively Known As: Cable Mapper Tester, LAN Cable Tester, RJ11 RJ12 RJ45 Cable Tester, Coax Cable Mapper, Network Cable Fault Locator

Technical Specifications

Maximum Cable Length Range: 305m
Minimum Cable Length for Split Pairs: 0.5m
Maximum Cable Resistance: 100 ohms maximum DC
Maximum Voltage Between Any Two Pins Without Damage: 60V DC or 55V AC
Maximum Coax Cable Resistance: 100 ohms maximum DC
Dimensions (H x L x W): 38mm x 181mm x 70mm
Weight: 0.386 kg

Key Features

Maps voice (RJ11/RJ12), data (RJ45), and video (Coax F-Connector) cables in one step
Large backlit LCD display for clear wiring mapping and fault description
Built-in tone generator compatible with optional MTC40 tone probe
Includes video and data remote identifiers for quick cable location

Professional Installation Requirements

No professional installation required; designed for use by technicians and installers for cable testing and mapping.

Applications

Telecommunications: Phone line wiring verification
Networking: Computer network cable testing and mapping
Video: Coaxial cable testing for video systems
Maintenance: Cable fault detection and troubleshooting in wiring closets and patch panels

Standards & Compliance

Complies with AS/NZS 60950 – Safety of IT and Communication Equipment

Environmental Benefits

Helps reduce cable waste by accurately identifying faults and avoiding unnecessary cable replacement
Supports efficient maintenance and troubleshooting, reducing downtime and resource use

Warranty Information

Standard manufacturer warranty applies. Please refer to Majortech for specific warranty details.

Available Now

The Majortech Voice Data Video Cable Mapper MTC30 is available now for immediate purchase. Ideal for telecommunications, networking, and video system maintenance professionals.
