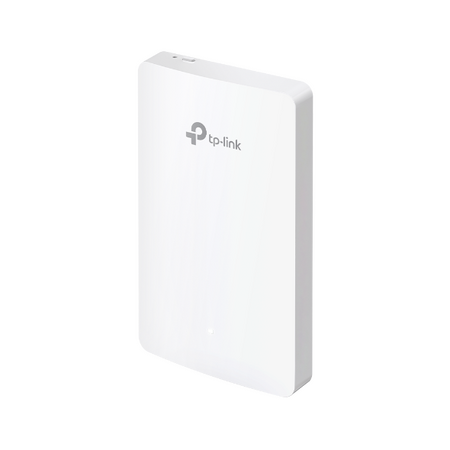

Wi-Fi 6 Wall Plate Access Point AX1800 PoE TP-Link

BRAND: Dicker Data
SKU: EAP615-WALL
$192.50 List price: $256.70
+ −
30 Days Return Electricians Unlock Trade Access
Wi-Fi 6 wall plate access point with simultaneous dual-band speeds up to 1775 Mbps, including 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz. Four Gigabit Ethernet ports provide one uplink and three downlink ports with PoE pass-through support. Supports 802.3af Power over Ethernet and installation with 86 mm, EU, and US standard junction boxes. See the specifications below for dimensions, management features, and installation requirements.

Alternatively Known As: Wi-Fi 6 Wall Plate Access Point, Dual-Band PoE Access Point, TP-LINK Omada AX1800 Access Point

Technical Specifications
  • Wi-Fi Speed: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz (total 1775 Mbps)
  • Ethernet Ports: 4 Gigabit ports (1 uplink, 3 downlink), with one downlink port supporting PoE pass-through
  • PoE Standard: 802.3af/at
  • Management: Omada SDN cloud-based centralized management
  • Installation: Compatible with 86 mm, EU, and US standard junction boxes
  • Security: Multiple guest authentication options including SMS and voucher
  • Dimensions (H x L x W): 86mm x 40mm x 86mm
  • Weight: 0.5 kg
Key Features
  • Simultaneous dual-band Wi-Fi 6 speeds up to 1775 Mbps (574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz)
  • Four Gigabit Ethernet ports including one uplink and three downlink ports with PoE pass-through support
  • Centralized management via Omada SDN for cloud access and remote control
  • Secure guest network with multiple authentication options such as SMS and voucher
  • Easy installation compatible with 86 mm, EU, and US standard junction boxes
  • Supports 802.3af/at Power over Ethernet (PoE)
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure proper PoE wiring and compliance with local electrical standards.
Applications
  • Residential: Homes and apartments requiring high-speed Wi-Fi
  • Commercial: Offices, retail stores, and hospitality venues
  • Enterprise: Businesses needing centralized network management and secure guest access
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
  • Energy-efficient Wi-Fi 6 technology reduces power consumption while delivering high performance
  • PoE support minimizes the need for additional power cables, reducing material use and installation impact
Warranty Information

5 years warranty provided by TP-LINK.

Available Now

The TP-LINK OMADA AX1800 Wi-Fi 6 Dual-Band Wall Plate Access Point is available for immediate purchase, ideal for enhancing network performance in residential, commercial, and enterprise environments.


FAQ

Q: What Wi-Fi speeds does this wall plate access point support?
A: It supports 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz, with simultaneous dual-band speeds up to 1775 Mbps.

Q: How many Ethernet ports does the access point have?
A: It has four Gigabit Ethernet ports, including one uplink and three downlink ports with PoE pass-through support.


For another wall-mounted installation, consider a Wi-Fi 6 wall plate access point with AX3000 performance.

A Wi-Fi 6 ceiling access point provides an alternative mounting option for indoor wireless coverage.

For outdoor wireless coverage, a Wi-Fi 6 outdoor access point provides an option for external installations.

Backed by SCHNAP's 30-day returns policy for added purchasing confidence.
