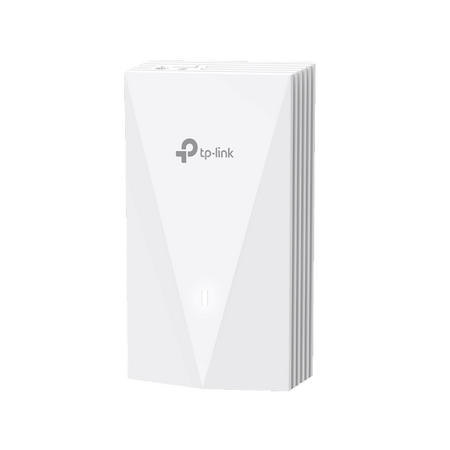

Wi-Fi 6 Wall Plate Access Point AX3000 PoE TP-Link

BRAND: Dicker Data
SKU: EAP655-WALL
$223.40 List price: $297.90
+ −
30 Days Return Electricians Unlock Trade Access
Wi-Fi 6 wall plate access point with simultaneous dual-band speeds up to 2976 Mbps, including 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz. Four Gigabit Ethernet ports provide one uplink and three downlink ports, with PoE pass-through support. Supports 802.3at PoE and installation with 86 mm, EU, and US standard junction boxes. See the specifications below for dimensions, management features, and installation requirements.

Alternatively Known As: Wi-Fi 6 Wall Plate Access Point, Dual-Band Wall Access Point, PoE Wall Plate AP, Omada AX3000 Access Point

Technical Specifications
  • Wi-Fi Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz (total 2976 Mbps)
  • Wireless Technology: Wi-Fi 6 (802.11ax)
  • Ports: 4 Gigabit Ethernet ports (3 downlink, 1 PoE pass-through)
  • PoE Support: 802.3at
  • Installation: Compatible with 86 mm, EU, and US standard junction boxes
  • Security: Multiple guest authentication options including SMS, Facebook Wi-Fi, Voucher
  • Management: Centralized cloud management via Omada SDN
  • Dimensions (H x L x W): 86mm x 40mm x 86mm
  • Weight: 0.5 kg
Key Features
  • Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz for a total of 2976 Mbps Wi-Fi speeds
  • OFDMA and MU-MIMO technology for high-performance connectivity and reduced lag
  • Complete in-room Wi-Fi coverage with strong signals corner-to-corner
  • Multiple Gigabit ports including one with PoE pass-through
  • Centralized cloud management via Omada SDN for remote access and control
  • Secure guest network with multiple authentication options including SMS, Facebook Wi-Fi, and Voucher
  • Easy installation compatible with 86 mm, EU, and US standard junction boxes
  • Supports 802.3at PoE for power over Ethernet
Professional Installation Requirements
  • Professional installation by a qualified electrician or network technician is recommended to ensure proper mounting, PoE connection, and network configuration.
Applications
  • Residential: Homes and apartments requiring strong in-room Wi-Fi coverage
  • Commercial: Offices, hotels, and meeting rooms needing centralized cloud-managed Wi-Fi
  • Hospitality: Guest network access with secure authentication options
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Energy-efficient Wi-Fi 6 technology reduces power consumption while delivering high performance
  • Supports centralized cloud management to optimize network resources and reduce hardware waste
Warranty Information

5 years warranty provided by the manufacturer.

Available Now

The TP-LINK OMADA AX3000 Wi-Fi 6 Dual-Band Wall Plate Access Point is available now for immediate purchase. Ideal for enhancing in-room Wi-Fi coverage in residential, commercial, and hospitality environments.


FAQ

Q: What Wi-Fi speeds does this wall plate access point support?
A: It supports 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz, with total dual-band speeds up to 2976 Mbps.

Q: How many Ethernet ports does the access point have?
A: It has four Gigabit Ethernet ports, including one uplink and three downlink ports with PoE pass-through support.


For another wall-mounted installation, consider a Wi-Fi 6 wall plate access point with AX1800 performance.

A Wi-Fi 6 ceiling access point provides an alternative mounting option for indoor wireless coverage.

For outdoor wireless installations, a Wi-Fi 6 outdoor access point provides an option for external coverage.
