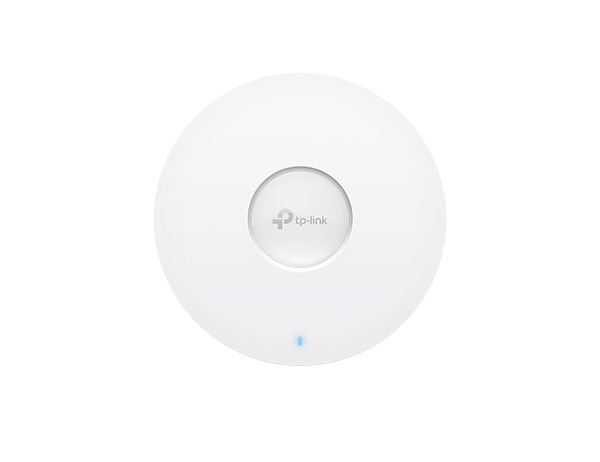

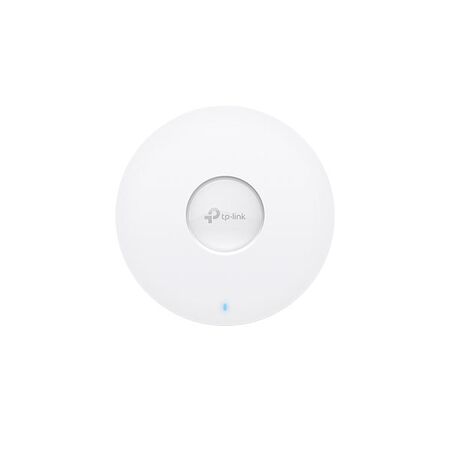

WiFi 6 Access Point Dual Band 574/1201 Mbps PoE+ TP-Link Ness
Ness TP-Link WiFi 6 access point features dual band 574/1201 Mbps and PoE+ power. Ideal for commercial WiFi installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TP-Link EAP613, Omada EAP613, AX1800 WiFi 6 Access Point, Dual-Band PoE+ Access Point
Technical Specifications
- Model: EAP613
- Wi-Fi Standard: IEEE 802.11a/b/g/n/ac/ax
- Wireless Speed: 574 Mbps at 2.4 GHz plus 1201 Mbps at 5 GHz
- Network Interface: 1 x Gigabit Ethernet port
- Power Supply: 802.3at PoE+, passive PoE or 12 V DC
- Antennas: 2 x 4 dBi at 2.4 GHz; 2 x 5 dBi at 5 GHz
- Wireless Capacity: Supports 250+ concurrent clients
- Security: WPA, WPA2 and WPA3 encryption
- Management: Omada Software Controller, hardware controller, Omada App and cloud management
- Wireless Features: MU-MIMO, OFDMA, beamforming, seamless roaming and mesh support
- SSID Capacity: Up to 16 SSIDs, with 8 per band
- Mounting: Ceiling, wall, junction box or T-bar mounting
- Dimensions (H x L x W): 33.6mm x 160mm x 160mm
- Weight: 0.5 kg
Key Features
- Dual-band Wi-Fi 6 AX1800 connectivity
- 574 Mbps 2.4 GHz and 1201 Mbps 5 GHz wireless rates
- Powered through 802.3at PoE+ for flexible commercial installation
- Centralised management through the TP-Link Omada platform
- Supports seamless roaming and Omada Mesh
- WPA3 security, VLANs, captive portal and rogue access point detection
- Compact ultra-slim ceiling-mount design
- Suitable for commercial, retail, hospitality and office networks
Professional Installation Requirements
- Installation should be performed by a qualified network technician where PoE cabling, ceiling mounting or commercial network configuration is required. Configure and install in accordance with applicable electrical, communications and manufacturer requirements.
Applications
- Commercial Wi-Fi installations
- Offices and workspaces
- Retail and hospitality venues
- Schools and public buildings
- Multi-access-point wireless networks
- Residential homes requiring centrally managed Wi-Fi
Standards & Compliance
- AS/NZS 62368.1: Applicable safety standard for audio/video, information and communication technology equipment; confirm the supplied unit's Australian conformity documentation and RCM marking.
Environmental Benefits
- PoE+ operation allows power and data to be delivered over a single Ethernet cable, reducing separate power cabling and installation materials.
- Energy-efficient Wi-Fi 6 operation supports higher network capacity without requiring a proportional increase in access-point hardware.
- RoHS-oriented electronic construction helps limit the use of restricted hazardous substances; verify product-specific documentation where required.
- Ceiling or wall mounting and centralised management can support longer service life and reduce premature equipment replacement.
Warranty Information
TP-Link Australia lists a 3-year warranty for Omada indoor access points purchased in Australia or New Zealand through authorised retailers, subject to its warranty conditions and Australian Consumer Law. Ness also publishes a general 3-year warranty for Ness manufactured or supplied products; the applicable warranty should be confirmed with the point of purchase.
Available Now
Available through Ness and authorised Australian TP-Link distributors, subject to current stock and distribution arrangements.
