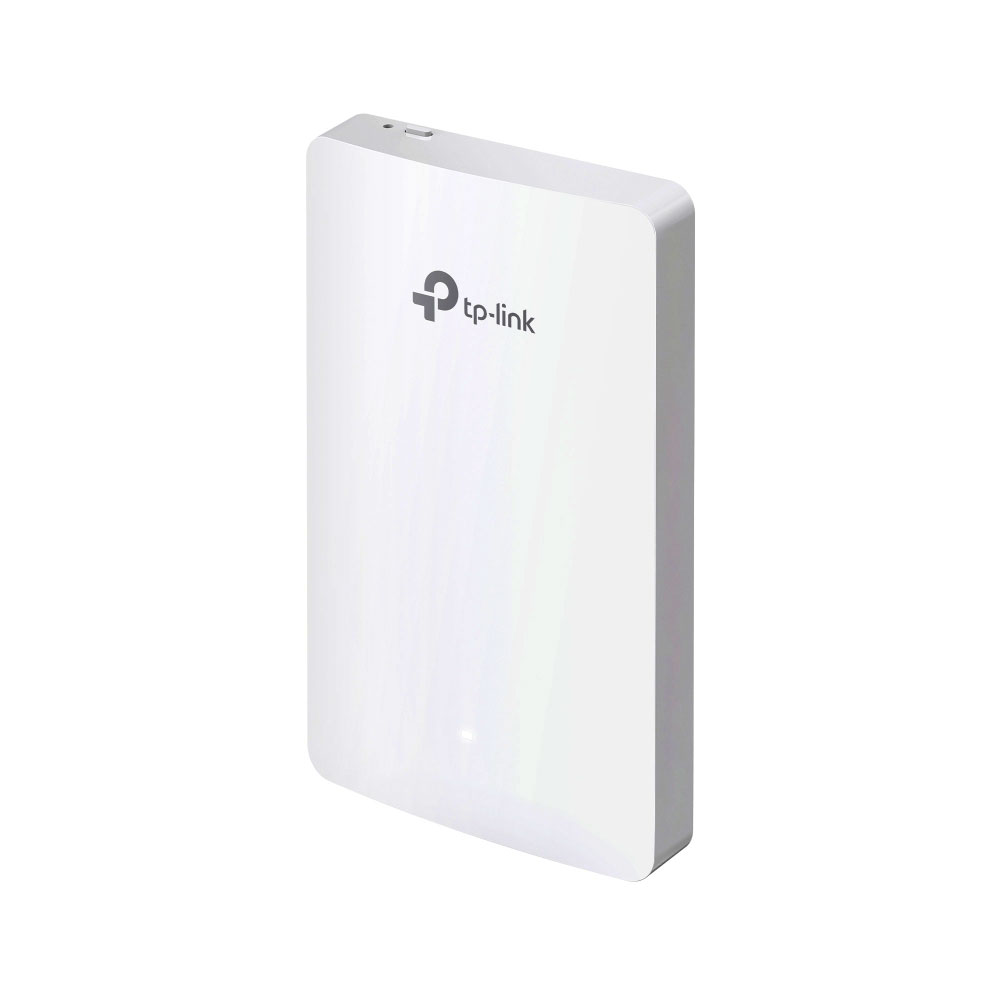

WiFi Access Point Dual Band PoE TP-Link EAP615-Wall Ness
Ness TP-Link wall WiFi access point features dual band operation and PoE power. Ideal for commercial WiFi installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TP-Link Omada EAP615-Wall, AX1800 Wall Plate Wi-Fi 6 Access Point, Dual-Band PoE Access Point
Technical Specifications
- Wireless Standard: IEEE 802.11ax/ac/n/g/b/a
- Wireless Bands: 2.4 GHz and 5 GHz dual-band operation
- Maximum Wireless Rate: 574 Mbps at 2.4 GHz and 1201 Mbps at 5 GHz
- Ethernet Ports: 1 x Gigabit uplink and 3 x Gigabit downlink ports
- PoE Input: 802.3af/at Power over Ethernet
- PoE Pass-Through: One downlink port; up to 13 W on EU version
- Maximum Power Consumption: 10 W with PoE pass-through disabled
- Antennas: 2 x dual-band antennas; 3 dBi at 2.4 GHz and 4 dBi at 5 GHz
- Wireless Capacity: Up to 16 SSIDs and 100+ connected clients, depending on operating conditions
- Management: Omada App, hardware or software controller, cloud access and centralised management
- Security: WPA, WPA2 and WPA3 Personal/Enterprise, captive portal, VLAN and 802.1X
- Mounting: Wall plate mounting; compatible with 86 mm, EU and US standard junction boxes
- Operating Temperature: 0 °C to 40 °C
- Operating Humidity: 10% to 90% RH, non-condensing
- Dimensions (H x L x W): 19.7mm x 143mm x 86mm
- Weight: 0.22 kg
Key Features
- Wi-Fi 6 AX1800 dual-band wireless performance
- Four Gigabit Ethernet ports for network and connected wired devices
- 802.3af/at PoE input simplifies installation without a local power outlet
- PoE pass-through can power a compatible downstream device
- Wall plate design suited to rooms, offices, hospitality and commercial installations
- Integrated with the TP-Link Omada SDN platform for centralised management
- Supports WPA3 security, guest networks, captive portal and VLANs
- Includes wall mounting kits
Professional Installation Requirements
- The access point can be configured by a competent network installer. Installation of new fixed Ethernet cabling should be completed by a suitably qualified cabler in accordance with applicable Australian cabling requirements. No mains electrical connection is required when powered via PoE.
Applications
- Commercial Wi-Fi installations
- Hotels, apartments and student accommodation
- Offices, classrooms and meeting rooms
- Retail, hospitality and public-access guest networks
- Room-level wireless coverage in Omada-managed networks
- VoIP phones and other compatible wired devices using PoE pass-through
Standards & Compliance
- AS/NZS 3820: Essential safety requirements for electrical equipment, where applicable to the supplied configuration
- AS/NZS 4417.1 and AS/NZS 4417.2: Regulatory Compliance Marking framework for applicable electrical equipment
- ACMA requirements for wireless, electromagnetic compatibility and radiocommunications equipment apply to Australian supply; verify the Australian-market RCM marking for the supplied unit
Environmental Benefits
- PoE combines power and data over one Ethernet cable, reducing the need for separate local power cabling
- Low maximum power consumption of approximately 10 W supports efficient network operation
- Wall-mounted solid-state design has no battery or user-replaceable consumable components
- Long service life and centralised firmware management can reduce premature replacement and electronic waste
Warranty Information
TP-Link Australia lists a 5-year limited warranty for Omada indoor access points purchased from an authorised Australian or New Zealand retailer or reseller, subject to the applicable warranty policy and proof of purchase.
Available Now
Available through Ness, TP-Link and authorised Australian networking distributors, subject to current stock.
