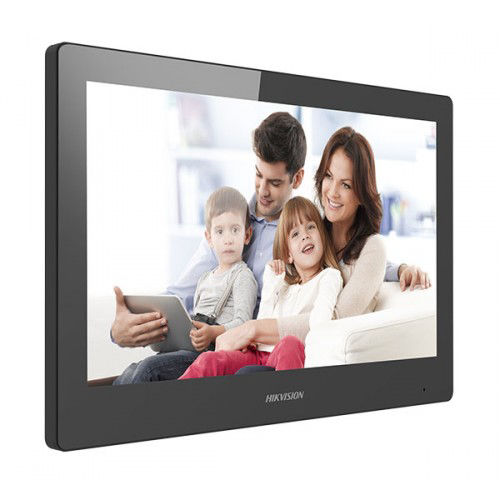

WiFi Intercom Room Station 10 Inch Hikvision
Hikvision WiFi intercom room station features a 10 inch screen. Ideal for video intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision KH9 Series Indoor Station, Hikvision Video Intercom Room Station, DS-KH9510-WTE1(B)
Technical Specifications
- Display: 10.1-inch colour IPS capacitive touch screen
- Display Resolution: 1024 × 600
- Operating System: Android 10.1
- Memory: 2 GB RAM, 8 GB ROM
- Wi-Fi: 2.4 GHz IEEE 802.11b/g/n
- Network Interface: 1 × RJ-45 10/100 Mbps
- Power Supply: 12 VDC, 1 A or standard IEEE 802.3af PoE
- Power Consumption: ≤ 12 W
- Audio: Built-in omnidirectional microphone and loudspeaker
- Audio Compression: G.711U and G.711A
- Interfaces: 8 alarm inputs, 1 alarm output, RS-485 and TF card slot
- TF Card Support: Up to 128 GB
- Communication Protocols: TCP/IP, SIP and RTSP
- Installation: Surface mounting
- Operating Temperature: -10°C to 50°C
- Operating Humidity: 10% to 90% RH, non-condensing
- Application Environment: Indoor
- Dimensions (H x L x W): 166mm x 254mm x 26.65mm
- Weight: 0.875 kg
Key Features
- 10.1-inch touch-screen room station for IP video intercom systems
- Wireless connectivity through 2.4 GHz Wi-Fi
- Supports standard PoE or 12 VDC power supply
- Built-in Hik-Connect application for Hikvision device management
- Supports third-party Android application installation and software integration
- Noise suppression and echo cancellation for clearer communication
- Supports connection to up to 17 doorphones and 16 network cameras
- Includes alarm inputs, alarm output, RS-485 and lock-control interfaces
- Supports video intercom, live viewing and integrated access-control functions
Professional Installation Requirements
- Configuration should be performed by a suitably qualified security or communications technician. If a mains-powered plug-pack or hard-wired power supply is used, electrical work must comply with applicable Australian requirements and be completed by a licensed electrician where required.
Applications
- Residential video intercom systems
- Apartment and multi-dwelling developments
- Small commercial premises
- Reception and visitor-management systems
- Hikvision IP access-control and security integrations
- Indoor room stations for door-entry and building communication
Standards & Compliance
- AS/NZS 62368.1: Audio, video, information and communication technology equipment safety requirements, applicable to the equipment and its power supply where relevant
- AS/NZS 3820: Essential safety requirements for low-voltage electrical equipment, where applicable
- AS/NZS 3000: Electrical installations and wiring requirements for associated fixed electrical work
Environmental Benefits
- Low operating power consumption of up to 12 W supports efficient operation
- Surface-mount design and solid-state electronics can support a long service life with reduced replacement waste
- Digital video intercom communication can reduce the need for physical access visits and associated travel
Warranty Information
Warranty coverage is subject to the applicable Hikvision Australia sales agreement and authorised-distributor terms. Confirm the warranty period and eligibility at purchase; grey-import products may not receive Hikvision Australia warranty or RMA support.
Available Now
Available through Hikvision and authorised Australian security, access-control and communications distributors.
