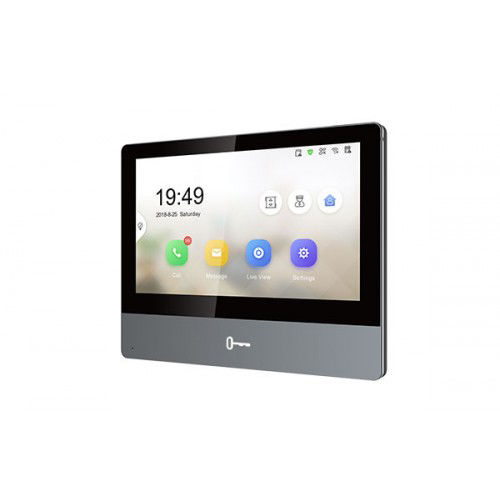

WiFi Intercom Room Station 7 Inch Hikvision
Hikvision WiFi intercom room station features a 7 inch screen. Ideal for video intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Wi-Fi Intercom Room Station, Hikvision 7-Inch Indoor Station, Hikvision IP Video Intercom Monitor
Technical Specifications
- Display: 7-inch colourful IPS LCD
- Display Resolution: 1024 × 600
- Operation: Capacitive touchscreen with physical button
- Wireless Network: Wi-Fi 802.11 b/g/n
- Wired Network: 10/100 Mbps self-adaptive Ethernet
- Network Protocols: TCP/IP, SIP and RTSP
- Audio: Built-in omnidirectional microphone and loudspeaker
- Audio Quality: Noise suppression and echo cancellation
- Alarm Inputs: 8 channels
- Alarm Outputs: 2
- Storage: TF/microSD card up to 32 GB
- Serial Interface: RS-485
- Power Supply: IEEE 802.3af standard PoE or 12 VDC/1 A
- Power Consumption: ≤7 W
- Installation: Surface mounting
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% non-condensing
- Application Environment: Indoor
- Dimensions (H x L x W): 140mm x 22.4mm x 180mm
- Weight: 0.355 kg
Key Features
- 7-inch colour IPS touchscreen for video intercom communication
- Wi-Fi connectivity for flexible network installation
- Standard PoE or 12 VDC power options
- Remote door unlocking through client software or mobile client
- Live viewing of compatible door stations and external cameras
- Capture support during video calls using compatible TF/microSD storage
- Eight alarm inputs and two alarm outputs for integration with security devices
- Built-in microphone with noise suppression and echo cancellation
- Slim aluminium and tempered-glass design
- One physical door-unlock button
Professional Installation Requirements
- Installation and commissioning should be completed by a suitably qualified security, communications or electrical technician. PoE or 12 VDC wiring must be installed in accordance with applicable Australian requirements and the manufacturer's instructions.
Applications
- Residential video intercom systems
- Apartment and multi-dwelling access control
- Commercial building entrances
- Office and reception areas
- Medical, education and community facilities
- Security systems requiring indoor monitoring and remote door release
Standards & Compliance
- AS/NZS CISPR 32:2015 electromagnetic compatibility emissions
- AS/NZS 4268:2017 radio equipment and systems requirements
- AS/NZS IEC 60839.11.1:2019 may apply to the broader electronic access control system installation
Environmental Benefits
- Low operating power consumption of up to 7 W can help reduce energy use during continuous operation
- RoHS and REACH-related material compliance is specified for the product range
- Aluminium, glass and electronic components can be directed to appropriate recycling streams at end of service life
- Durable surface-mounted construction can help reduce replacement frequency and associated waste
Warranty Information
Hikvision warranty support is available through authorised Australian distribution channels. The applicable warranty term for this model should be confirmed against the purchase invoice and current Hikvision Australia warranty schedule.
Available Now
Available through Hikvision and authorised Australian security and communications distributors.
