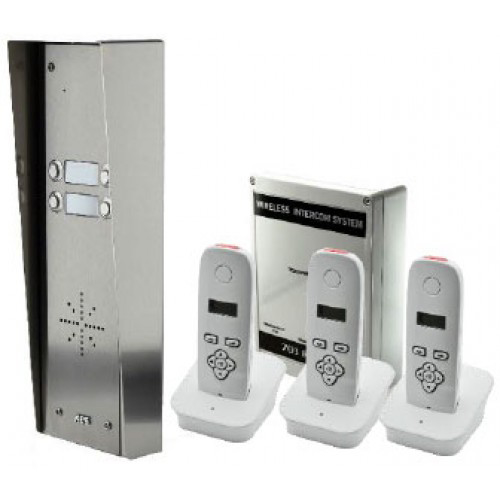

Wireless Intercom 3 Handsets 100m Weatherproof Stainless iCentral
iCentral wireless intercom system features 3 handsets, 100m range and weatherproof stainless steel construction. Ideal for wireless intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: iCentral 703-HS3, iCentral 106-854, DECT 703 Wireless Intercom, 3-Handset Wireless Gate Intercom
Technical Specifications
- System Type: Digital DECT wireless audio intercom
- Handsets: 3 DECT wireless handsets with charging bases
- Working Range: Up to 100m in open-field conditions
- Door Station: Surface-mount, four-button call station
- Material: BS316 marine-grade stainless steel
- Weather Resistance: IP55 speech unit; IP65 transmitter
- Relay Outputs: 2, suitable for vehicle and pedestrian gate control
- Relay Rating: Maximum 2A at 24V AC
- Power Supply: 12V DC adaptor included
- Cable: 4m screened CAT5 cable between speech unit and transmitter
- Expansion: Supports up to 4 handsets per system
- Additional Function: Built-in voicemail for missed callers
- Model Reference: 703-HS3; manufacturer part number 106-854
- Dimensions (H x L x W): 293mm x 70mm x 111mm
- Weight: 1.5 kg
Key Features
- Three wireless DECT handsets included
- 100m practical open-field operating range
- Marine-grade BS316 stainless steel hooded door station
- Four call buttons, with three handsets supplied for separate properties or users
- Two relay outputs for gate or door control
- IP55 speech unit and IP65 transmitter protection
- Built-in voicemail for missed calls
- Handset-to-handset internal calling
- Optional expansion to a fourth handset
- Charging bases and power supply included
Professional Installation Requirements
- Installation should be performed by a professional automatic gate installer or access control specialist. The system should be range-tested on site before permanent installation, and the final gate or access-control installation must comply with applicable electrical and regulatory requirements. ([ness.com.au](https://ness.com.au/images/uploaded/Products/106-855/iCentral_703intercom_manual.pdf))
Applications
- Residential shared gate entrances
- Apartment and multi-dwelling access control
- Commercial premises and gated communities
- Pedestrian and vehicle gate communication
- Wireless communication between a door station and multiple properties
Standards & Compliance
- AS/NZS CISPR 32:2015 EMC emissions requirements, as identified in the manufacturer conformity declaration for the 703-HS3 equipment family. ([gatemotors.s3.amazonaws.com](https://gatemotors.s3.amazonaws.com/PDF/DECT%20705%20Single%20Button%20Wireless%20Audio%20%26%20Video%20QSG%20EUR%20v1.2.pdf?utm_source=openai))
Environmental Benefits
- BS316 stainless steel construction provides corrosion resistance and supports a long service life in outdoor installations
- Repairable, replaceable handsets and components can reduce premature whole-system replacement
- A wireless connection can reduce the need for additional communication cabling between the entrance station and handsets
Warranty Information
Two-year manufacturer's warranty, return to base. Separate warranty documentation states that iCentral intercom systems receive one year of cover, with a possible additional year when the warranty card is completed and returned; confirm the applicable term at purchase. ([valet.com.au](https://valet.com.au/uploads/doc/iCentral_703_DECT_intercom_brochure.pdf))
Available Now
Available through iCentral/Ness and authorised Australian distributors; stock status may vary. ([ness.com.au](https://ness.com.au/icentral))
