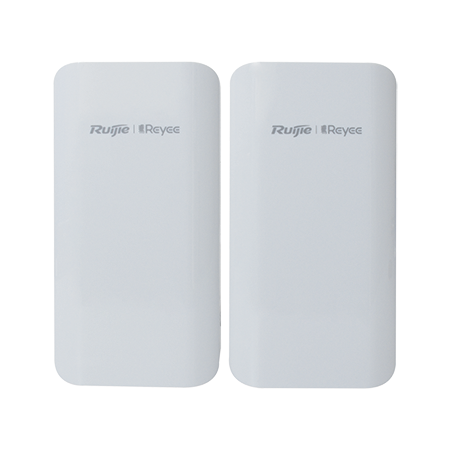

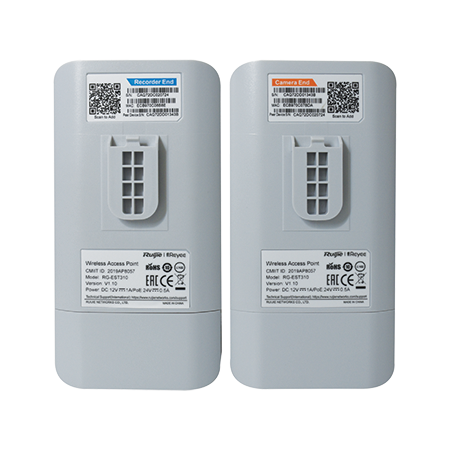

Wireless Network Bridge 10dBi | 1km Range | Outdoor Use | Ethernet Port by Matchmaster

SKU: 57MM-WB01
$305.20 List price: $369.40
+
Wireless network bridge with 10dBi antenna and 1km range—ideal for outdoor networks in campuses and large properties. Built for easy installation, with weather-resistant design and Ethernet port for seamless connectivity.

Product Name/Title: 10dBi 1km Wireless Network Bridge

Brand: Matchmaster

SKU: 57MM-WB01

Alternatively Known As: Wireless Bridge, 10dBi Wireless Network Bridge, 802.11ac Wireless Bridge

Technical Specifications
  • Chip: QCA9531, QCA9886
  • RAM/Flash: 64MB/8MB
  • Radio: Dual-stream single-band 2×2
  • Operating Band: 802.11a/n/ac: 5.725~5.850GHz
  • Antenna: Built-in directional antennas, gain: 10dBi
  • Maximum Throughput: Up to 100Mbps LAN, 867Mbps wireless
  • Ports: 1 10/100Base-T Ethernet port, 1 DC port
  • Power Consumption: <5W
  • Operating Temperature: -30°C~50°C
  • Storage Temperature: -40°C~70°C
  • Operating Humidity: 5%~95% (non-condensing)
  • Installation: Wall-mounted/Pole-mounted
  • Dimensions (H x L x W): 37mm x 147mm x 76mm
  • Weight: 0.35 kg
Key Features
  • 5GHz single-band dual-stream chip with transmit power ≤250mW
  • One-click setup and management via the free cloud app
  • PTMP supported bridging for multiple cameras
  • High durability with IP54 rating for outdoor environments
  • Power supply redundancy support (12V and 24V)
  • Wall or pole mounted installation
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Farms and rural properties
  • Tower cranes
  • Factories
  • Campuses
  • Construction sites
Environmental Benefits
  • Designed for outdoor use with IP54 rating, reducing the need for additional protective housing.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The 10dBi 1km Wireless Network Bridge is available now for immediate purchase. Ideal for outdoor applications requiring reliable wireless connectivity.

Brochure (57mm-wb01_brochure.pdf, 538 Kb) [Download]

Wireless Bridge Installation Guide (ruijie-reyee-series-wireless-bridge-implementation-cookbook-v1-5.pdf, 6,451 Kb) [Download]

Ruijie Product Application Guide (ruijie-product-application-guide-brochure.pdf, 2,823 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
