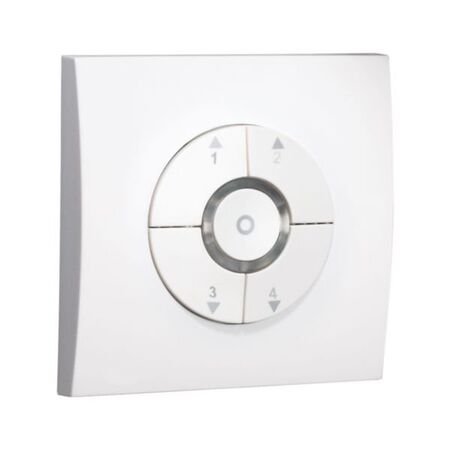

Wireless Scene Setting Plate | 868 MHz RF Control | IP40 Rated | Compact Design | @Each of 1 | by CP Electronics
The Wireless Scene Setting Plate is designed for seamless lighting control, featuring 868 MHz radio frequency, user programming mode, and a stylish compact design. Ideal for residential and commercial lighting automation, it offers a battery life exceeding 7 years and supports multiple mounting options, ensuring flexibility and ease of use in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wireless Scene Setting Plate | 868 MHz RF Control | IP40 Rated | Compact Design | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: AR-SG-4SM-W
Alternatively Known As: Wireless Scene Controller, Wireless Lighting Scene Plate, RF Scene Setting Plate, Wireless Light Control Panel
Technical Specifications
- Radio frequency: 868 MHz
- Modulation: FM
- Rolling code system: Yes
- Code length: 512 bits
- Range: 30 meters
- Number of commands: 4
- Degree of protection: IP40
- Operating temperature: -10 to 35 °C
- Standby consumption: 0.001 mA
- Battery type: 3V CR2477 lithium button cell
- Mounting method: Surface mounted or recessed mounted
- Colour: White (RAL 9002)
- Halogen free: Yes
- Dimensions (H x L x W): 86mm x 36.5mm x 86mm
- Weight: 0.1 kg
Key Features
- Stylish push-button wall plate for on/off, scene selection, and raise/lower control
- User programming mode for quick and easy scene setting via RF or USB connection
- Compact design fits standard UK and European backboxes
- Battery life greater than 7 years (typical)
- Optional 12Vdc regulated power supply available
- IP40 rated for protection
- Supports manual, flush-mounted, and surface-mounted radio transmitters
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal wireless performance.
Applications
- Lighting control in residential buildings
- Commercial lighting scene management
- Office and retail lighting automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Wireless control reduces the need for extensive wiring, minimizing material waste
- Low power consumption with battery life exceeding 7 years
- Supports energy-saving lighting scenes to reduce electricity usage
Warranty Information
Standard manufacturer warranty applies; typically 2 years.
Available Now
The CP Electronics Wireless Scene Setting Plate AR-SG-4SM-W is available for immediate purchase, ideal for wireless lighting control in residential and commercial environments.
