WISI VX and LR Pluggable Modules | Flexible Design | High Compatibility | Easy Integration by Matchmaster
WISI VX and LR pluggable modules with flexible design and high compatibility—ideal for broadcasting and data transmission. Built for seamless integration, with low power consumption and standardized connectors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

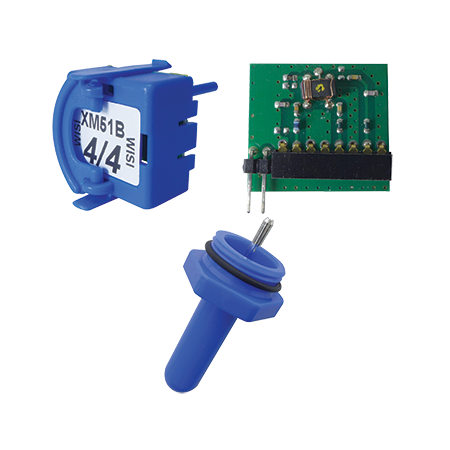

Product Name/Title: WISI VX and LR Series Pluggable Modules
Brand: Matchmaster
SKU: 14MM-XM51B
Alternatively Known As: WISI Pluggable Modules, VX Series Modules, LR Series Modules, Network Amplifier Modules, Fibre Node Accessories
Technical Specifications
- Pluggable output splitters and taps
- Upstream and downstream diplexer filter options
- Power insertion kits supporting 27-90V AC (XE29)
- Bluetooth antennas for wireless control via iOS and Android devices
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Pluggable output splitters and taps to help balance your network builds
- Pluggable upstream and downstream diplexer filter options
- 27-90V AC power insertion kits - XE29
- Bluetooth antennas for wireless control via iOS and Android devices using HFC manager application
- Additional modules available on request
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper network integration and compliance with safety standards.
Applications
- Network builds requiring flexible amplifier and fibre node configurations
- Telecommunications and cable TV network installations
- Systems needing customizable diplexers, splitters, and taps
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Modular design reduces waste by allowing selective upgrades and replacements
- Bluetooth wireless control reduces the need for physical adjustments, lowering maintenance travel emissions
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster for specific warranty details.
Available Now
The WISI VX and LR Series Pluggable Modules by Matchmaster are available now for immediate purchase. Ideal for telecommunications and cable network installations requiring flexible and modular amplifier solutions.
