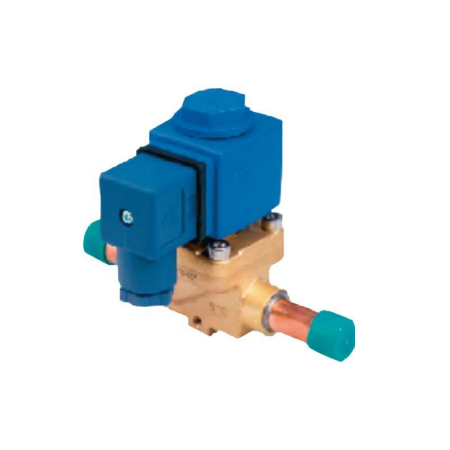

1 1/8” SOL Solenoid Valve | High Flow | -40°C to 105°C Operating Range | 31 Bar Max Pressure | by Aspen Pumps
The 1 1/8” SOL Solenoid Valve is designed for HVAC and refrigeration systems, offering a high flow rate and a wide operating temperature range from -40°C to 105°C. With a maximum operating pressure of 31 bar and compatibility with HCFC, HFC, and A2L refrigerants, this valve ensures reliable performance in industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1 1/8” SOL Solenoid Valve | High Flow | -40°C to 105°C Operating Range | 31 Bar Max Pressure | by Aspen Pumps
Brand: Aspen Pumps
SKU: 705-18
Alternatively Known As: High Flow Solenoid Valve, Refrigeration Solenoid Valve, 1 1/8 inch Solenoid Valve
Technical Specifications
- CV (Flow Coefficient): 6.9
- Liquid Kw R-134A: 92
- Liquid Kw R-407c: 94
- Liquid Kw R-404a: 70
- Operating Temperature Range: -40°C to 105°C
- Maximum Operating Pressure: 31 bar
- Safe Working Pressure (SWP): 43 bar
- Electrical Connection: Din plug
- Dimensions (H x L x W): 117mm x 191mm x 60mm
- Weight: 1.5 kg
Key Features
- Suitable for HCFC, HFC, and A2L refrigerants
- Wide operating temperature range from -40°C to 105°C
- High maximum operating pressure up to 31 bar
- Din plug electrical connection
- Certified to UL, VDE, and CQC standards
- SWP (Safe Working Pressure) of 43 bar
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed professional is recommended to ensure compliance with safety and operational standards.
Applications
- HVAC systems using HCFC, HFC, and A2L refrigerants
- Refrigeration systems requiring high flow solenoid valves
- Industrial and commercial refrigeration and air conditioning
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Compatible with low global warming potential refrigerants (A2L)
- Supports energy-efficient HVAC and refrigeration system operation
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps 1 1/8” SOL Solenoid Valve is available for immediate purchase, ideal for HVAC and refrigeration applications requiring reliable solenoid valve performance.
