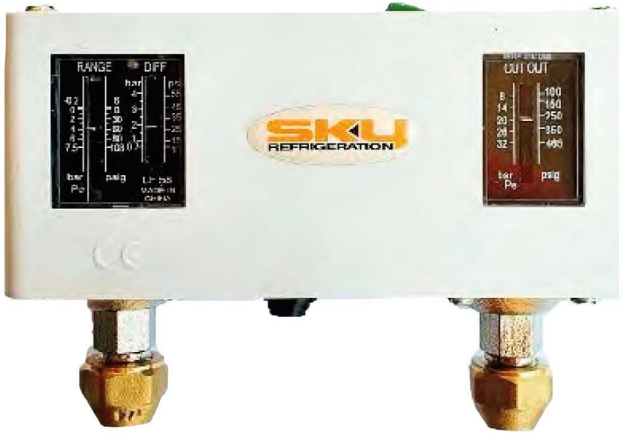

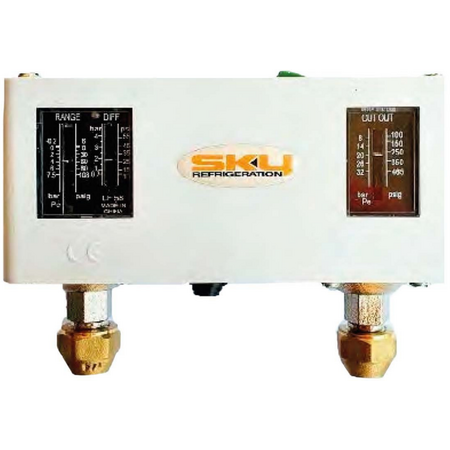

1/4 MSAE Dual Pressure Control | Manual Reset on High Pressure | Low Range -0.2 to 7.5 bar | High Range 8 to 32 bar | by Aspen Pumps
The 1/4 MSAE Dual Pressure Control is designed for precise pressure regulation in mechanical and HVAC systems. With a manual reset feature on high pressure, it operates within a low range of -0.2 to 7.5 bar and a high range of 8 to 32 bar, ensuring safety and efficiency. Ideal for industrial machinery and pumping systems, this durable controller helps maintain system efficiency while reducing energy waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1/4 MSAE Dual Pressure Control | Manual Reset on High Pressure | Low Range -0.2 to 7.5 bar | High Range 8 to 32 bar | by Aspen Pumps
Brand: Aspen Pumps
SKU: 721-DP32-HM
Alternatively Known As: Dual Pressure Switch, Manual Reset Pressure Control, 1/4 MSAE Pressure Controller
Technical Specifications
- Low Range Pressure: -0.2 to 7.5 bar
- High Range Pressure: 8 to 32 bar
- Differential Bar: Fixed at 4
- Safe Working Pressure (SWP): 20 bar
- Manual reset on high pressure
- Connection Type: 1/4 MSAE
- Dimensions (H x L x W): 80mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- Dual pressure control with manual reset on high pressure
- Low range pressure: -0.2 to 7.5 bar
- High range pressure: 8 to 32 bar
- Fixed differential bar: 4
- Safe working pressure (SWP): 20 bar
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with mechanical pressure control systems to ensure safety and compliance.
Applications
- Mechanical pressure control systems
- HVAC systems
- Industrial machinery requiring pressure regulation
- Pumping systems with dual pressure control needs
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps maintain system efficiency by precise pressure control, reducing energy waste.
- Durable mechanical design reduces need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen 1/4 MSAE Dual Pressure Control Manual Reset on High is available for immediate purchase, ideal for industrial and mechanical pressure control applications.
