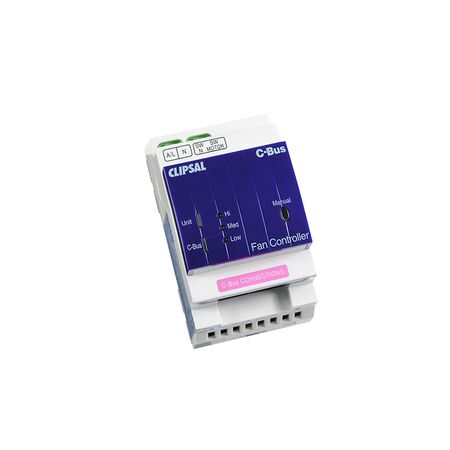

Product Name/Title: 1 Channel Relay for Sweep Fan Control | No C-Bus Power Supply | DIN Rail Mounted
SKU: L5501RFCP
Alternatively Known As: Sweep Fan Control Relay, DIN Rail Fan Relay, C-Bus Fan Relay, Capacitor Fan Relay
Technical Specifications
- C-Bus current requirement: 18 mA
- Maximum units per network: 100
- Network clock: Software selectable
- Network burden: Software selectable when Unit Address is 001
- AC input impedance: 100 kOhm at 1 kHz
- Warm-up time: 10 seconds
- Electrical isolation: 3.75 kV from C-Bus to mains
- Input voltage for fan motor: 100 V AC to 240 V AC
- Fan load rating: 1.5 A
- Switch duty type: Continuous duty (S1), line and neutral switched
- Speed control: Capacitive with capacitor block for Low and Medium speeds, direct on-line for High speed
- Connectors: 2 x RJ-45 for C-Bus
- Capacitor block: 3 push buttons for one 1.5 mm
- Dimensions (H x L x W): 90mm x 60mm x 54mm
- Weight: 0.3 kg
Key Features
- C-Bus current requirement 18 mA, powered from C-Bus network, does not provide power for the C-Bus network
- Maximum units per network 100
- Network clock software selectable
- Network burden software selectable when Unit Address is 001
- AC input impedance 100 kOhm at 1 kHz
- Warm-up time 10 seconds
- Electrical isolation 3.75 kV from C-Bus to mains
- Input voltage for fan motor 100 V AC to 240 V AC; input circuit must have a suitable circuit breaker
- Fan load rating 1.5 A
- Switch duty type (S1) Continuous duty; line and neutral are switched
- Speed control capacitive with capacitor block supplied by fan manufacturer for Low and Medium speeds; High speed uses direct on-line
- Three unique fan speeds: Low, Medium, High, and Off
- Connectors: 2 x RJ-45 for C-Bus
- Capacitor block with 3 push buttons for one 1.5 mm
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical standards and safe operation.
Applications
- Residential and commercial fan control systems
- Automation systems requiring sweep fan speed control
- DIN rail mounted electrical control panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient fan speed control reduces energy consumption
- Supports automation to optimize fan operation and reduce waste
Warranty Information
2 years warranty against manufacturing defects.
