1 Phase kWhmeter direct 80A 2M MODBUS MID

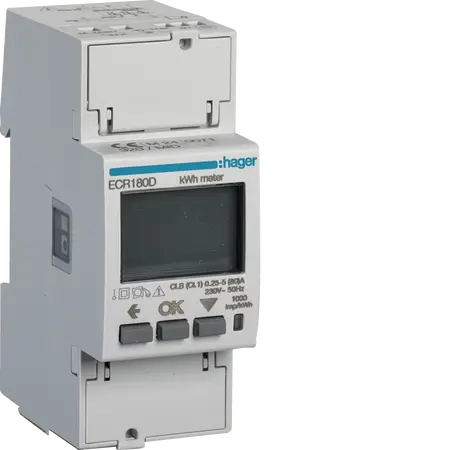

1 Phase kWh Meter 80A | MODBUS RS-485 | IP20 Rated | 2M by Hager

BRAND: :hager

SKU: ECR180D

$318.40 List price: $407.20

+ −

30 Days Return Delivery Options

1 Phase kWh meter with direct 80A connection and MODBUS RS-485—ideal for residential and commercial energy monitoring. Built for easy integration, with IP20 protection for indoor use.

Description
Attachments

Product Name/Title: 1 Phase kWhmeter direct 80A 2M MODBUS MID

Brand: Hager

SKU: ECR180D

Alternatively Known As: Energy Meter, kWh Meter, MODBUS Meter, Digital Energy Meter

Technical Specifications

Architecture Bus system: MODBUS
Type of pole: 1P+N
Maximum measuring circuit current: 80 A
Number of modules: 2
Type of pulse generator: Optical
Current measurement range: 0.25 - 80.0 A
Measurement range voltage Ph-N: 92 - 276 V
Frequency measuring range: 45 - 65 Hz
Accuracy class: B
Calibrated: Yes
Operating temperature: -25 - 55 °C
Storage/transport temperature: -25 - 70 °C
Power consumption: 2 VA
Total power loss under IN: 1 W
Dimensions (H x L x W): 92mm x 60mm x 36mm
Weight: 0.5 kg

Key Features

Direct connection with MODBUS RS-485 for easy integration.
Rated current of 80A with a measurement range of 0.25 - 80A.
IP20 ingress protection for indoor use.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, energy monitoring
Commercial: Offices, retail spaces, energy management

Standards & Compliance

Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.

Environmental Benefits

RoHS and REACH compliant, contributing to reduced environmental impact.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager 1 Phase kWhmeter Direct 80A 2M MODBUS MID is available now for immediate purchase. Ideal for residential and commercial energy monitoring.

ECR180D (ECR180D, 131 Kb) [Download]

reach_declaration_ECR180D3.pdf (reach_declaration_ECR180D3.pdf, 103 Kb) [Download]

(Modbus_table_Summary_V1_14.pdf, 836 Kb) [Download]

6LE005253B_Inst_ECR180D_DE_EN.pdf (6LE005253B_Inst_ECR180D_DE_EN.pdf, 2,942 Kb) [Download]

(ENERGY_METERS_SPECIFICATIONS_AND_TECHNICAL_GUIDE.pdf, 1,342 Kb) [Download]

(ENERGYMETERS_BROCHURE.pdf, 15,812 Kb) [Download]

(EUDoC_0023.04-2024.pdf, 457 Kb) [Download]
