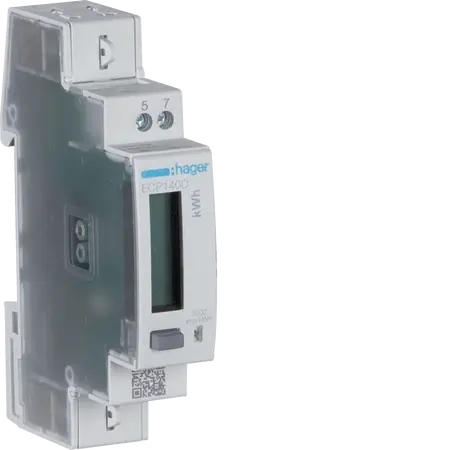

1 Phase kWh Meter Direct 40A | 1M S0 MID | IP20 Rated by Hager

BRAND: :hager

SKU: ECP140D

$174.20 List price: $222.70

+ −

30 Days Return Delivery Options

1 Phase kWh meter with direct connection and 40A rated current—ideal for residential and commercial energy monitoring. Built for easy installation, with IP20 protection for indoor use.

Description
Attachments

Product Name/Title: 1 Phase kWhmeter direct 40A 1M S0 MID

Brand: Hager

SKU: ECP140D

Alternatively Known As: Hager Energy Meter, 1 Phase Energy Meter, kWh Meter 40A

Technical Specifications

Type of pole: 1P+N
Maximum measuring circuit current: 40 A
Number of modules: 1
Type of pulse generator: Electrical
Current measurement range: 0.25 - 40.0 A
Measurement range voltage Ph-N: 184 - 276 V
Frequency measuring range: 45 - 65 Hz
Accuracy class: B
Tariff type: One-tariff
Ingress Protection (IP) class: IP20
Operating temperature: -25 - 55 °C
Storage/transport temperature: -25 - 70 °C
Power consumption: 2 VA
Total power loss under IN: 1 W
Dimensions (H x L x W): 92mm x 60mm x 18mm
Weight: 0.5 kg

Key Features

Direct connection for easy installation.
Rated current of 40A with a measurement range of 0.25 - 40.0 A.
IP20 ingress protection for indoor use.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Light industrial applications requiring energy monitoring

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

RoHS and REACH compliant, contributing to reduced environmental impact.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager 1 Phase kWhmeter Direct 40A 1M S0 MID is available now for immediate purchase. Ideal for residential and commercial energy monitoring.

ECP140D (ECP140D, 121 Kb) [Download]

reach_declaration_ECP140D3.pdf (reach_declaration_ECP140D3.pdf, 103 Kb) [Download]

rohs_declaration_ECP140D3.pdf (rohs_declaration_ECP140D3.pdf, 104 Kb) [Download]

6LE005490B_Inst_ECP140D_DE_EN.pdf (6LE005490B_Inst_ECP140D_DE_EN.pdf, 1,874 Kb) [Download]

(ENERGY_METERS_SPECIFICATIONS_AND_TECHNICAL_GUIDE.pdf, 1,342 Kb) [Download]

(ENERGYMETERS_BROCHURE.pdf, 15,812 Kb) [Download]

EUDoC_0026.04_2024.pdf (EUDoC_0026.04_2024.pdf, 451 Kb) [Download]
