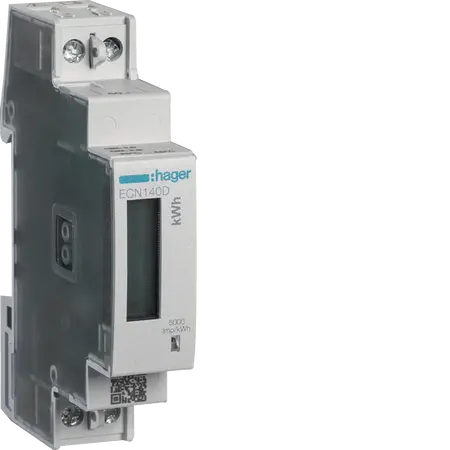

1 Phase kWh Meter Direct 40A | Optical Pulse | IP20 Rated by Hager
1 Phase kWh meter with direct 40A connection and optical pulse generator—ideal for residential and commercial energy monitoring. Built for easy installation, with IP20 rating for safe indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1 Phase kWhmeter direct 40A 1M
Brand: Hager
SKU: ECN140D
Alternatively Known As: Single Phase Energy Meter, kWh Meter, Direct Connection Meter
Technical Specifications
- Type of pole: 1P+N
- Rated current: 40 A
- Maximum measuring circuit current: 40 A
- Number of modules: 1
- Type of connection: Direct connection
- Current measurement range: 0.25 - 40.0 A
- Measurement range voltage Ph-N: 184 - 276 V
- Frequency measuring range: 45 - 65 Hz
- Accuracy class: B
- Tariff type: One-tariff
- Ingress Protection (IP) class: IP20
- Operating temperature: -25 - 55 °C
- Storage/transport temperature: -25 - 70 °C
- Power consumption: 2 VA
- Total power loss under IN: 1 W
- Dimensions (H x L x W): 92mm x 58mm x 18mm
- Weight: 0.5 kg
Key Features
- Direct connection for easy installation.
- Optical pulse generator for accurate measurement.
- Suitable for a wide range of current and voltage measurements.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring energy monitoring
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager 1 Phase kWhmeter Direct 40A 1M is available now for immediate purchase. Ideal for residential and commercial energy monitoring.
