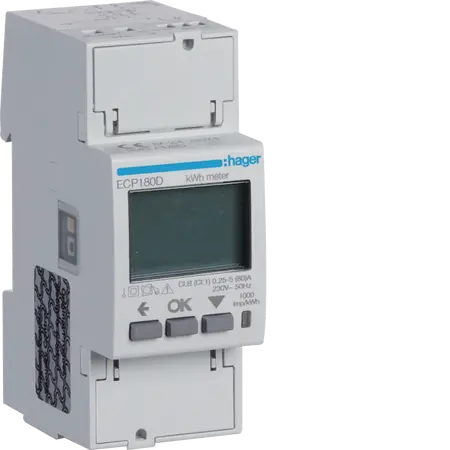

1 Phase kWh Meter Direct 80A | 2M S0 MID | IP20 Rated by Hager
1 Phase kWh meter with direct 80A connection and 2M S0 MID certification—ideal for residential and commercial energy monitoring. Built for accurate readings, with IP20 protection for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1 Phase kWhmeter direct 80A 2M S0 MID
Brand: Hager
SKU: ECP180D
Alternatively Known As: Single Phase Energy Meter, kWh Meter, MID Certified Meter
Technical Specifications
- Type of pole: 1P+N
- Rated current: 80 A
- Maximum measuring circuit current: 80 A
- Number of modules: 2
- Type of connection: Direct connection
- Current measurement range: 0.25 - 80.0 A
- Measurement range voltage Ph-N: 92 - 276 V
- Frequency measuring range: 45 - 65 Hz
- Accuracy class: B
- Ingress Protection (IP) class: IP20
- Operating temperature: -25 - 55 °C
- Storage/transport temperature: -25 - 70 °C
- Power consumption: 2 VA
- Total power loss under IN: 1 W
- Dimensions (H x L x W): 92mm x 60mm x 36mm
- Weight: 0.5 kg
Key Features
- Direct connection for easy installation.
- Rated current of 80A for high capacity.
- Electronic measurement for accurate readings.
- IP20 ingress protection for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring energy monitoring
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Helps in monitoring energy consumption, leading to reduced carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager 1 Phase kWhmeter Direct 80A 2M S0 MID is available now for immediate purchase. Ideal for residential and commercial energy monitoring.
