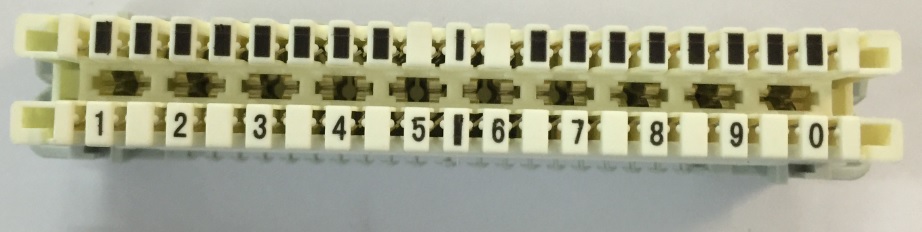

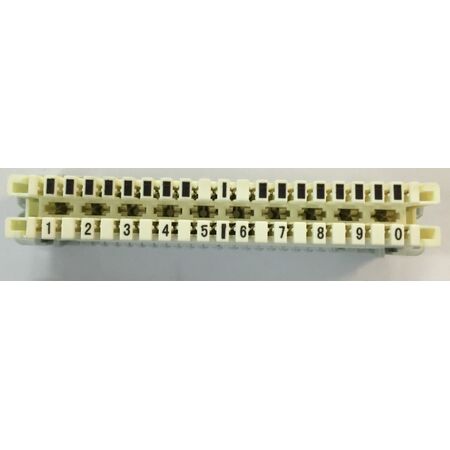

Product Name/Title: 10 Way Disconnection Module with Screw Terminals | 250V AC | Compact Design | by Repelec
Brand: Repelec
SKU: DYNF10PDM-T
Alternatively Known As: 10 Way Disconnect Block, Terminal Disconnection Module, 10 Way Terminal Block, Disconnection Strip, DYNF10PDM-T
Technical Specifications
- Number of ways: 10
- Connection type: Screw terminals
- Material: Flame-retardant plastic housing
- Voltage rating: 250V AC
- Current rating: 10A
- Mounting: Snap-in for standard DIN rail or frame
- Operating temperature: -10°C to +60°C
- Dimensions (H x L x W): 40mm x 110mm x 25mm
- Weight: 0.15 kg
Key Features
- 10-way disconnection module for efficient circuit management
- Screw terminals for secure and reliable connections
- Suitable for voice, data, and low voltage applications
- Compact design for easy installation in distribution frames
- Provides clear separation and testing points for circuits
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure compliance with electrical safety standards.
Applications
- Telecommunications distribution frames
- Data and voice cabling systems
- Industrial control panels
- Security and alarm systems
- General electrical disconnection and testing points
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient maintenance and troubleshooting, reducing downtime and resource waste.
- Durable construction minimizes replacement frequency and electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Repelec 10 Way Disconnection Module with Screw Terminals (DYNF10PDM-T) is available for immediate purchase. Ideal for telecommunications, data, and control panel applications.
