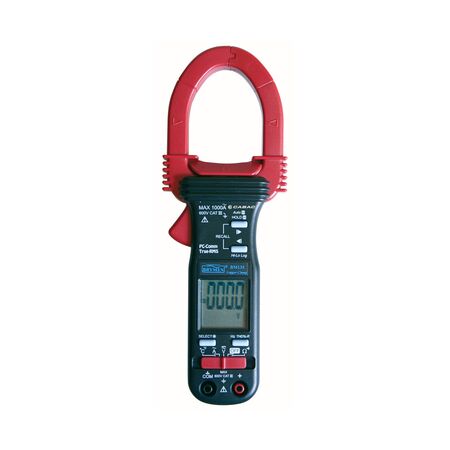

1000A AC Clamp Logger | True RMS | 5400 Point Recording

SKU: TBM135

$410.30 List price: $546.10

+ −

30 Days Return Delivery Options

1000A AC clamp logger with true RMS measurement and 5400 point recording—ideal for quick data logging. Built for precision, with a large 45mm jaw and backlit LCD for easy reading.

Description

Product Name/Title: 1000A AC Clamp Logger | True RMS | 5400 Point Recording

SKU: TBM135

Alternatively Known As: AC Clamp Meter Logger, True RMS Clamp Meter, Electrical Current Logger, Clamp Data Logger

Technical Specifications

Voltage range: DC 600V, AC 600V (50-60Hz), extended AC frequency range up to 3.1kHz
Current range: AC 40A, 400A, 1000A with True RMS
Resistance range: 999.9Ω
Continuity audible threshold: 10Ω-300Ω
Temperature range: -50° to 300°C (-58° to 572°F)
Frequency range: 5Hz to 500Hz
Display: 3 3/4 digit 6000 count LCD with backlight
Data logging: 5400 points, Hi-Lo format
Power consumption: 3.5mA for Volts & AAC; 4mA for Ohms & Temp; APO 10mA
Operating temperature: 0° to 40°C
Transient protection: 6 kV lightning surge (1.2/50 µS)
Low battery indication at ±2.4V
Dimensions (H x L x W): 40mm x 224mm x 78mm
Weight: 0.224 kg

Key Features

True RMS measurement with 5400 point recording
3 3/4 digit 6000 count LCD with backlight
Hi-Lo data logging format with optional PC interface software
Large jaw size of 45mm
Auto Hold feature
Stand alone data logging
Update rate: 2/sec for Hz, 4/sec for V, A, Ohms, temperature
Low power consumption with auto power off after 17 minutes
6 kV lightning surge transient protection

Professional Installation Requirements

Professional installation is not required; however, use by qualified personnel is recommended for safety and accurate measurements.

Applications

Electrical current and voltage measurement
Data logging for electrical systems
Industrial and commercial electrical maintenance
Power quality analysis and troubleshooting

Standards & Compliance

Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Enables efficient monitoring of electrical systems to optimize energy usage
Helps identify electrical inefficiencies reducing energy waste

Warranty Information

Warranty details not specified; typically includes manufacturer warranty against defects.

Available Now

The 1000A AC Clamp Logger TBM135 is available now for immediate purchase. Ideal for electrical maintenance, troubleshooting, and data logging in industrial and commercial environments.
