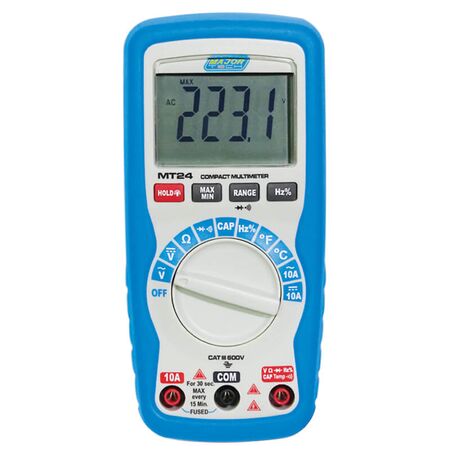

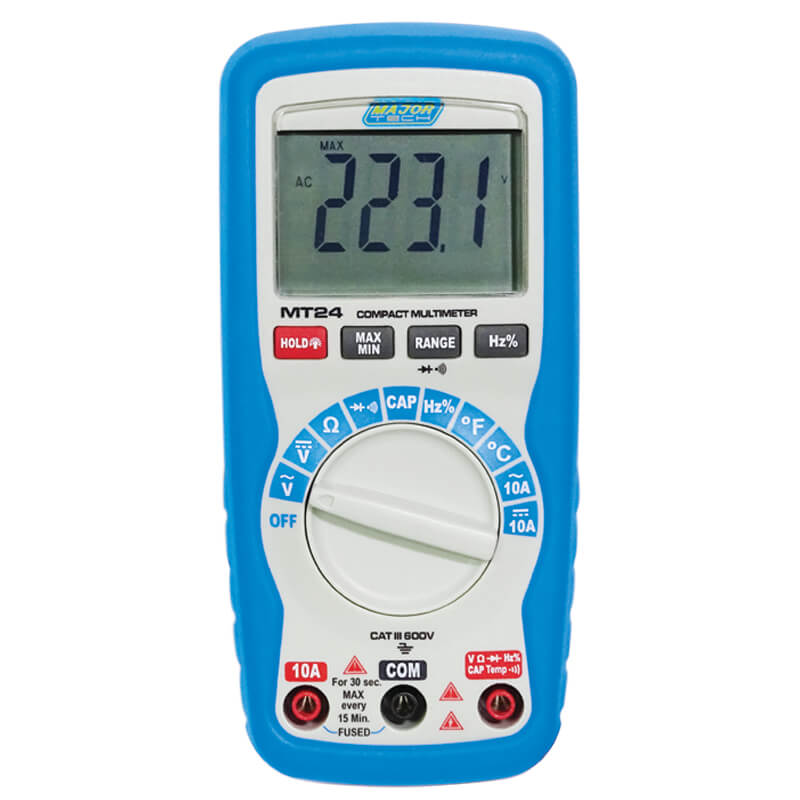

1000V AC/DC Compact Multimeter | Autoranging & Large LCD Display | Durable Design by Majortech
The 1000V AC/DC compact multimeter features autoranging and a large LCD display, making it ideal for electricians and HVAC technicians. Built for accurate electrical measurements, it offers a durable design and energy-efficient operation for long-lasting use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1000V AC/DC Compact Multimeter | Autoranging & Large LCD Display | Durable Design by Majortech
Brand: Majortech
SKU: MT24
Alternatively Known As: Digital Multimeter, Autoranging Multimeter, AC/DC Multimeter, Electrical Tester, HVAC Multimeter
Technical Specifications
- AC Voltage Range: 1mV to 1000V, Resolution: 0.1mV, Accuracy: ±(1.2% + 3 digits)
- DC Current Range: 1mA to 10A, Resolution: 1mA, Accuracy: ±(2.5% + 5 digits)
- AC Current Range: 1mA to 10A, Resolution: 1mA, Accuracy: ±(3.0% + 5 digits)
- Duty Cycle Range: 0.1 to 99.90%, Resolution: 0.001, Accuracy: ±(1.2% + 2 digits)
- Resistance Range: 0.1Ω to 60.00MΩ, Resolution: 0.1Ω, Accuracy: ±(1.0% + 2 digits)
- Frequency Range: 0.00Hz to 10MHz, Resolution: 0.001Hz, Accuracy: ±(1.2% + 3 digits)
- Capacitance Range: 10pF to 4000μF, Resolution: 10pF, Accuracy: ±(3.0% + 5 digits)
- Temperature Range: -20°C to 760°C, Resolution: 1°C, Accuracy: ±(3.0% + 5°C)
- Dimensions (H x L x W): 140mm x 35mm x 70mm
- Weight: 0.3 kg
Key Features
- Double moulded rubber housing for durability
- Large LCD display with white backlight for visibility in low light
- Autoranging with manual override option
- 6000 count LCD display with 61 segment analogue bargraph
- MIN/MAX recording and Data Hold functions
- Frequency measurement with Duty Cycle
- Capacitance measurement up to 4000μF
- Temperature measurement from -20°C to 760°C with K-Type thermocouple adaptor
Professional Installation Requirements
- No professional installation required; suitable for use by qualified electricians and technicians.
Applications
- Electricians for electrical measurements and troubleshooting
- Electronic technicians for circuit testing and diagnostics
- Air conditioning industry for HVAC system maintenance
Standards & Compliance
- Complies with AS/NZS 61010.1 – Safety requirements for electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- Energy-efficient design reduces battery consumption
- Durable housing extends product lifespan, reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech 1000V AC/DC Compact Multimeter MT24 is available now for immediate purchase. Ideal for electrical, electronic, and HVAC applications.
