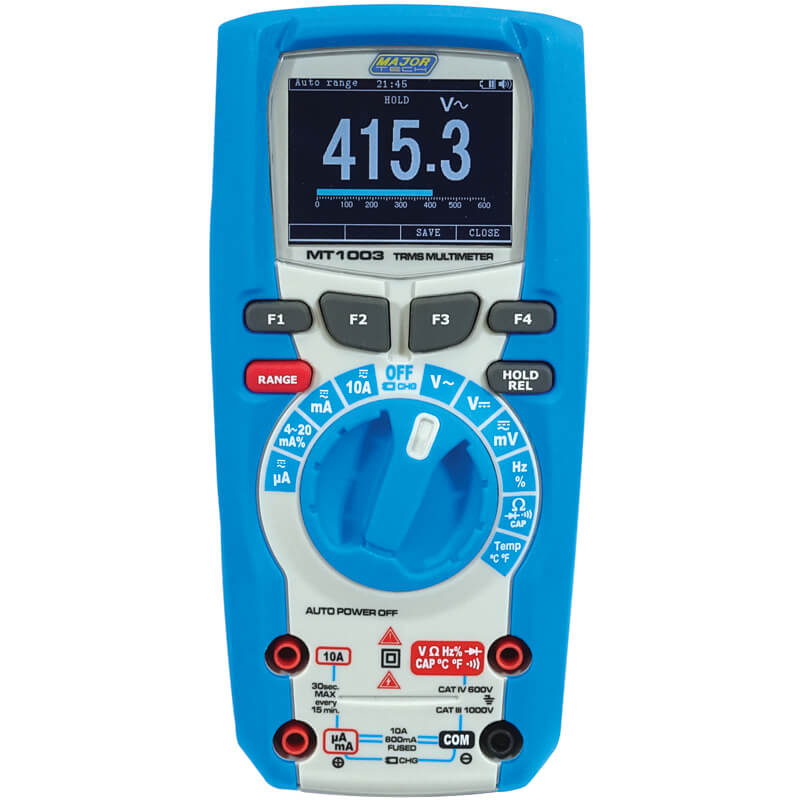

1000V AC/DC True RMS Multimeter | Heavy Duty Measurement | TFT LCD Display | Datalogging by Majortech
The 1000V AC/DC True RMS Multimeter offers heavy-duty measurement capabilities with a TFT LCD display and built-in datalogging features—ideal for industrial electrical measurements and troubleshooting. Designed for users with basic electrical knowledge, it ensures accurate readings and reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1000V AC/DC True RMS Multimeter | Heavy Duty Measurement | TFT LCD Display | Datalogging by Majortech
Brand: Majortech
SKU: MT1003
Alternatively Known As: True RMS Multimeter, Industrial Digital Multimeter, AC/DC Multimeter, Electrical Tester, MT1003 Multimeter
Technical Specifications
- AC Voltage Range: 0.1mV to 1000V, Accuracy: ±(0.9% + 5 digits)
- AC+DC TRMS Voltage Range: 6V to 1000V, Accuracy: ±(3.0% + 20 digits)
- DC Current Range: 0.1μA to 10A, Accuracy: ±(0.9% + 5 digits)
- AC Current Range: 0.1μA to 10A, Accuracy: ±(1.2% + 5 digits)
- Duty Cycle Range: 0.1 to 99.90%, Accuracy: ±(1.2% + 2 digits)
- Resistance Range: 0.1Ω to 60MΩ, Accuracy: ±(0.8% + 5 digits)
- Frequency Range: 0.01Hz to 10MHz, Accuracy: ±(0.09% + 5 digits)
- Capacitance Range: 0.01nF to 6mF, Accuracy: ±(1.2% + 8 digits)
- Temperature Range: -40 to 1350°C, Accuracy: ±(1.2% + 3°C)
- Dimensions (H x L x W): 90mm x 45mm x 180mm
- Weight: 0.5 kg
Key Features
- Heavy duty True RMS measurement for accurate AC/DC readings
- TFT colour LCD display for clear data visualization
- Fast A/D converting sampling time
- Built-in datalogging and Trend Capture features
- Double moulded plastic housing for safer measurements
- Automatic event recording for unattended operation
Professional Installation Requirements
- No professional installation required; however, users should have basic electrical knowledge to operate safely.
Applications
- Industrial electrical measurements
- Troubleshooting electrical equipment
- Maintenance and repair of electrical systems
- Laboratory and field testing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise electrical measurements reducing energy waste
- Durable design reduces electronic waste through extended product life
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech MT1003 1000V AC/DC True RMS Multimeter is available now for immediate purchase. Ideal for industrial and electrical maintenance applications.
