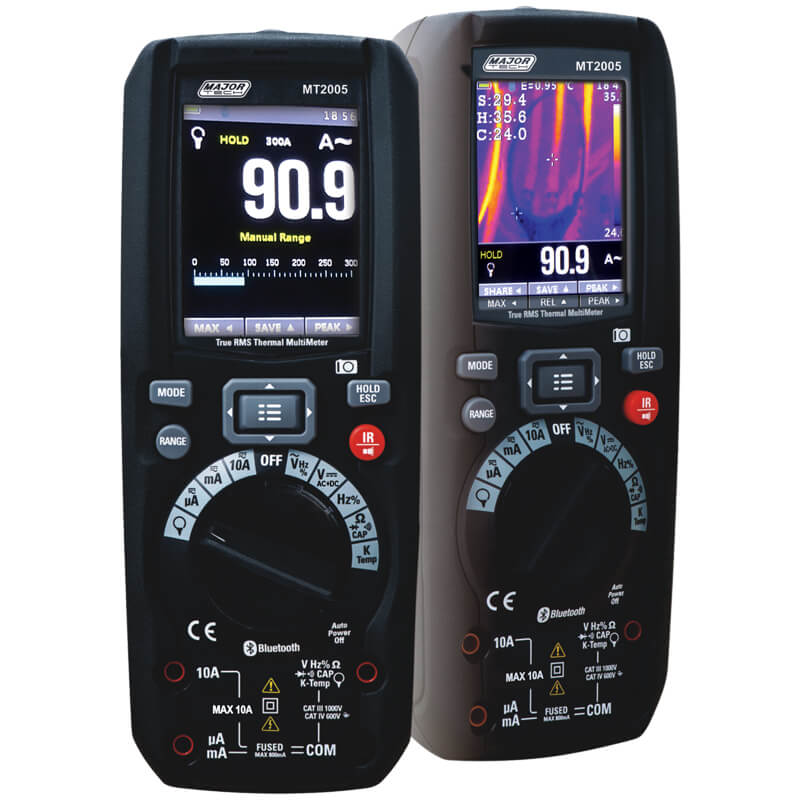

1000V AC/DC True RMS Thermal Multimeter | Built-in Thermal Imager | Bluetooth Connectivity | IP65 Waterproof by Majortech
The 1000V AC/DC True RMS Thermal Multimeter is designed for industrial and mining electrical diagnostics, featuring a built-in thermal imager and Bluetooth connectivity. With an IP65 waterproof rating and durable construction, it ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1000V AC/DC True RMS Thermal Multimeter | Built-in Thermal Imager | Bluetooth Connectivity | IP65 Waterproof by Majortech
Brand: Majortech
SKU: MT2005
Alternatively Known As: True RMS Multimeter, Thermal Imaging Multimeter, Industrial Digital Multimeter, Bluetooth Multimeter
Technical Specifications
- DC Voltage Range: 0.1mV to 1000V, Resolution: 0.1mV, Accuracy: ±(0.09% + 5 digits)
- AC Voltage Range: 0.001V to 1000V, Resolution: 0.1mV, Accuracy: ±(0.8% + 5 digits)
- AC+DC TRMS Voltage Range: 0.001V to 1000V, Resolution: 0.001V, Accuracy: ±(2.4% + 20 digits)
- DC Current Range: 0.1μA to 10A, Resolution: 0.1μA, Accuracy: ±(0.9% + 5 digits)
- AC Current Range: 0.1μA to 10A, Resolution: 0.1μA, Accuracy: ±(1.2% + 5 digits)
- Flexi Coil AC Current Range: 0.01A to 3000A, Resolution: 0.01A, Accuracy: ±(0.8% + 5 digits)
- Duty Cycle Range: 5.0% to 95.0%, Resolution: 0.001, Accuracy: ±(1.2% + 2 digits)
- Resistance Range: 600Ω to 60MΩ, Resolution: 0.1Ω, Accuracy: ±(0.5% + 5 digits)
- Frequency Range: 0.01Hz to 10MHz, Resolution: 0.01Hz, Accuracy: ±(0.09% + 5 digits)
- Capacitance Range: 0.01mF to 6000μF, Resolution: 0.01nF, Accuracy: ±(1.2% + 8 digits)
- Temperature Range 1: -40°C to 600°C, Resolution: 0.1°C, Accuracy: ±(1.5% + 3°C)
- Temperature Range 2: -20°C to 260°C, Accuracy: ±(1.5% + 3°C)
- Dimensions (H x L x W): 90mm x 45mm x 180mm
- Weight: 0.5 kg
Key Features
- Built-in 120 x 120 Pixel Thermal Imager
- TFT colour LCD display
- Fast A/D converting sampling time
- Bluetooth BLE technology for connectivity
- Double moulded rubber housing for safety
- IP65 waterproof rating
Professional Installation Requirements
- No professional installation required; however, use by trained personnel is recommended for accurate measurements and safety.
Applications
- Industrial equipment diagnostics
- Mining industry electrical measurements
- Production equipment troubleshooting
- General electrical and electronic testing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient design reduces power consumption during use
- Durable construction extends product lifespan, reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech 1000V AC/DC True RMS Thermal Multimeter MT2005 is available now for immediate purchase. Ideal for industrial and mining electrical diagnostics and troubleshooting.
