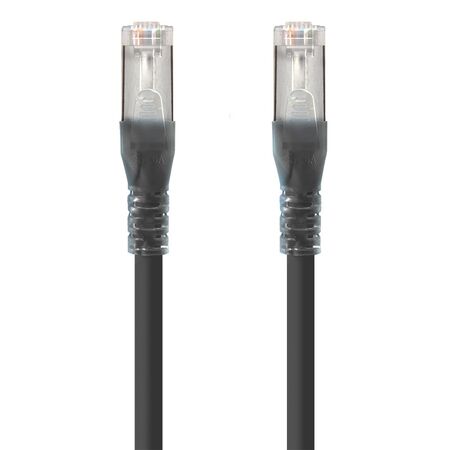

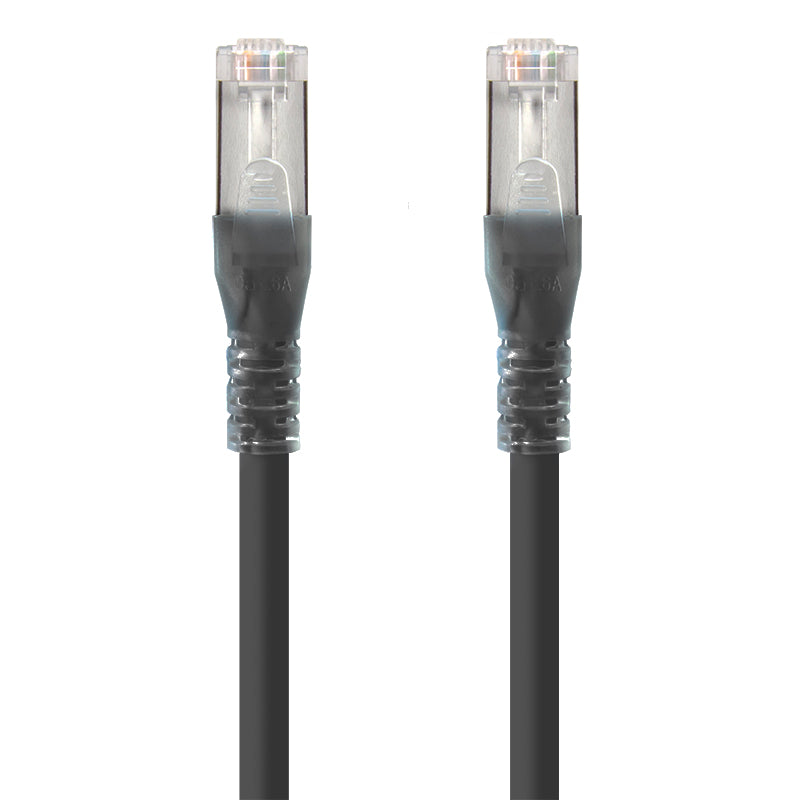

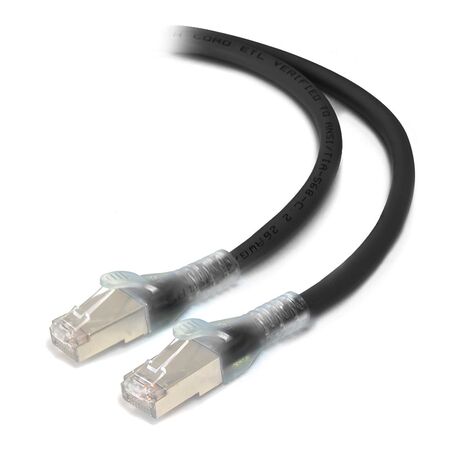

10m Black 10G Shielded CAT6A LSZH Network Cable | 500 MHz Bandwidth | Gold Plated RJ45 Connectors | by SERVEREDGE
The 10m Black 10G Shielded CAT6A LSZH Network Cable is designed for high-speed 10G Ethernet networks, featuring a 500 MHz bandwidth and individually foil shielded twisted pairs. Ideal for data centers, server rooms, and home networking, this cable ensures superior performance with gold plated RJ45 connectors and a low smoke zero halogen jacket for enhanced safety in confined spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 10m Black 10G Shielded CAT6A LSZH Network Cable | 500 MHz Bandwidth | Gold Plated RJ45 Connectors | by SERVEREDGE
Brand: SERVEREDGE
SKU: C6A-10-Black-SH
Alternatively Known As: CAT6A Shielded Network Cable, 10G Ethernet Cable, LSZH CAT6A Cable, 10 Gigabit Ethernet Cable, Shielded RJ45 Network Cable
Technical Specifications
- Bandwidth: 500 MHz
- Conductor: 26 AWG copper
- Shielding: Individually foil shielded twisted pairs with overall copper braided shield
- Connector: Gold plated 8x8 RJ45 plugs
- Cable Type: Category 6A SFTP
- Standards Compliance: TIA/EIA-568C.2.1 Category 6a, IEC 802.3an, ISO/IEC 11801
- Jacket: LSZH (Low Smoke Zero Halogen)
- Length: 10 meters
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.2 kg
Key Features
- Performance rated for 500 MHz bandwidth
- Supports up to 10G LANS including 10GBASE-T Ethernet and 1000BASE-TX Fast Ethernet
- Each twisted pair individually wrapped in aluminium foil Mylar with 100% coverage
- Overall copper braided shielding for enhanced protection
- LSZH (Low Smoke Zero Halogen) jacket for safety in confined spaces
- Category 6A SFTP cable wired straight through with 26 AWG gold plated 8x8 RJ45 plugs
- Snag-free strain relief molded boot for secure and accurate connection
- Suppresses Alien Near End Cross Talk (ANEXT) for superior 10GbE performance up to 100 meters
- A-Tick compliant as per ACMA requirements
- ETL verified to TIA/EIA-568C.2.1 Category 6a standards
- Compliant with IEC 802.3an and ISO/IEC 11801 standards
- UL approved
- Lifetime warranty
Professional Installation Requirements
- Professional installation by a qualified network technician or electrician is recommended to ensure optimal performance and compliance with standards.
Applications
- High-speed 10G Ethernet networks
- Data centers and server rooms
- Enterprise and commercial LANs
- Home networking with high bandwidth requirements
Standards & Compliance
- AS/NZS 3080 – Telecommunications installations – Generic cabling for customer premises
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic smoke and halogen emissions in case of fire, enhancing safety and environmental protection.
Warranty Information
Lifetime warranty provided by the manufacturer.
Available Now
The SERVEREDGE 10m Black 10G Shielded CAT6A LSZH Network Cable is available now for immediate purchase. Ideal for high-speed network installations in commercial and residential environments.
