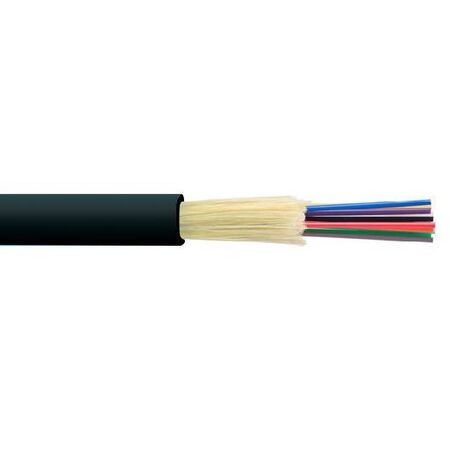

12 Core OM3 Fibre Cable Tight-Buffered 1km Length Certech
Designed for 1, 10, 40, 100 and 400 Gb/s applications, this 12 Core OM3 Fibre Cable Tight-Buffered 1km Length Certech delivers low attenuation and reliable network performance. It complies with ISO/IEC 11801 OM3/OM4 specification and AS/NZS 60950, making it suitable for professional installations. The tight-buffered construction supports compact cable management, low bend sensitivity and dependable operation across data centre and LAN environments. See the detailed specifications below for installation requirements, dimensions and compliance information.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supports 1, 10, 40, 100, and 400 Gb/s applications
- Complies with ISO/IEC 11801 OM3/OM4 specification
- IEC 60793-2-10 type A1a.2 and A1a.3 Optical Fibre Specification
- TIA/EIA-492AAAC/492AAAD detail specification
- Dimensions (H x L x W): 5mm x 1000mm x 10mm
- Weight: 1.0 kg
Key Features
- Very low macro-bending sensitivity
- Low micro-bending sensitivity
- Maintaining compatibility with current OM3/OM4 multimode optical fibre
- Low differential mode delay (DMD)
- Low attenuation
- Coated with a dual layer UV curable acrylate
- Easier to handle and install without excessive care
- Supports installation with small cable bend radii and compact organisers
- Facilitates jumper moves, adds and changes
- Optimized performance in tight-buffered cable applications
- High resistance to micro-bending
- Stable performance over a wide range of environmental conditions
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Central offices
- Data centres
- High performance computing centres
- Local Area Networks
- Storage Area Networks
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Optimized for installation in tight spaces, reducing material waste and improving efficiency.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The CERTECH 12 Core OM3 Tight-Buffered Fibre Cable is available now for immediate purchase, ideal for high-performance networking applications.
FAQ
Q: What applications is this fibre cable designed for?
A: It is suitable for central offices, data centres, high performance computing centres, Local Area Networks and Storage Area Networks.
Q: Does this cable comply with recognised standards?
A: Yes. It complies with ISO/IEC 11801 OM3/OM4 specifications and AS/NZS 60950, as shown in the product information.
Pair this installation with a 12 Core OM4 Indoor Outdoor Riser Fibre Optic Cable when an indoor and outdoor riser solution is required.
Use a 12 Core OM3 Blue Loose Tube Fibre Optic Cable where loose tube fibre cable is preferred for the installation.
Complete related backbone installations with a 6 Core OM3 Fire Rated Fibre Cable where fire-rated fibre cable is specified.
