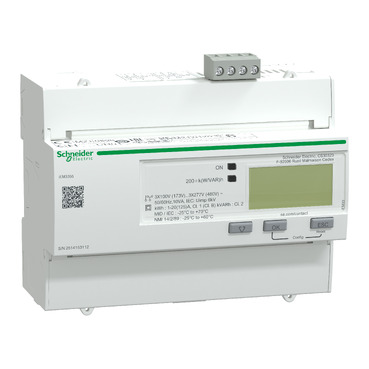

125A MID Energy Meter RS485 Class 1 Accuracy LCD Display Clipsal
The 125A MID Energy Meter RS485 is designed for precise energy monitoring in commercial and industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 125A MID Energy Meter RS485 | Class 1 Accuracy | LCD Display | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9MEM3355
Alternatively Known As: iEM3355 Energy Meter, Schneider iEM3355, MID Certified Energy Meter, 125A Modbus Energy Meter, SCHA9MEM3355
Technical Specifications
- Rated current: Direct up to 125A
- Accuracy: Class 1 (IEC 62053-21)
- MID certified (EN 50470-3)
- Voltage: 230/400V AC (50/60Hz)
- Display: LCD with backlight
- Communication: RS485 Modbus RTU
- Mounting: DIN rail
- Pulse output: 1 configurable output
- Power consumption: <2W
- Operating temperature: -25°C to +55°C
- Dimensions (H x L x W): 90mm x 65mm x 72mm
- Weight: 0.3 kg
Key Features
- Direct measurement up to 125A without external CTs
- MID certified for billing applications
- Class 1 accuracy for precise energy measurement
- RS485 Modbus communication for integration with BMS and SCADA
- LCD display for real-time data visualization
- Compact DIN rail mounting design
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Commercial and industrial energy monitoring
- Sub-metering in multi-tenant buildings
- Energy management systems
- Panel boards and switchboards
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to support energy efficiency initiatives
- Facilitates reduction of energy waste through accurate sub-metering
- Supports compliance with energy management and sustainability programs
Warranty Information
2 years manufacturer's warranty against defects.
Available Now
The Clipsal iEM3355 125A Class 1 MID Energy Meter RS485 (SCHA9MEM3355) is available for immediate purchase. Ideal for commercial and industrial energy monitoring and sub-metering applications.
