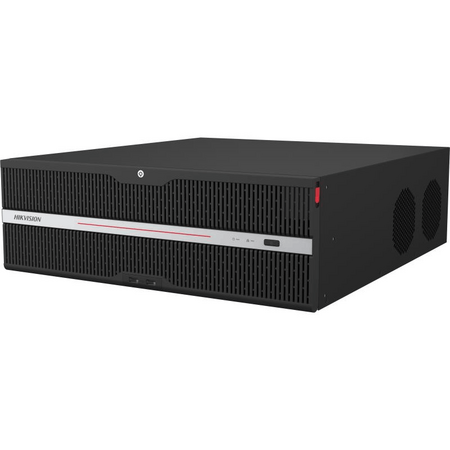

128 Channel NVR Network Video Recorder Hikvision
Supports up to 128 IP camera connections with decoding capacity up to 32x1080p. Provides 8K video output, RAID support and up to 8 IP speaker connections. Intelligent analytics include facial recognition, perimeter protection, video structuralization and AcuSearch. See the technical specifications below for storage, connectivity and installation requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Decoding Capacity: Up to 32×1080p
- Video Formats Supported: H.265+/H.265/H.264+/H.264
- Maximum IP Cameras Supported: 128 channels
- Intelligent Analytics: Facial recognition, perimeter protection, video structuralization, AcuSearch
- IP Speakers Supported: Up to 8 channels
- RAID Support: 0, 1, 5, 6, 10, N+M hot spare
- Video Output: HDMI up to 8K resolution, VGA
- Power Supply: Redundant power supply included
- Form Factor: 3RU, 16 bay
- Dimensions (H x L x W): 132mm x 400mm x 450mm
- Weight: 15 kg
Key Features
- Supports up to 32×1080p decoding capacity
- Compatible with H.265+/H.265/H.264+/H.264 video formats
- Connects up to 128 IP cameras
- Intelligent analytics including facial recognition, perimeter protection, video structuralization, and AcuSearch
- Supports up to 8 IP speakers
- RAID 0, 1, 5, 6, 10 and N+M hot spare support for reliable data storage
- HDMI video output up to 8K resolution
- Redundant power supply for enhanced reliability
Professional Installation Requirements
- Professional installation by certified security system technicians and qualified electricians is recommended to ensure proper setup and compliance with electrical and safety standards.
Applications
- Large-scale surveillance systems requiring up to 128 IP camera connections
- Security monitoring with advanced facial recognition and perimeter protection
- Data storage solutions needing RAID redundancy for reliability
- Commercial and industrial environments requiring high-resolution video output
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Efficient video compression with H.265+ reduces storage and bandwidth requirements, lowering energy consumption.
- Supports intelligent analytics to optimize surveillance operations and reduce unnecessary data processing.
Warranty Information
Standard manufacturer warranty applies. Please refer to HIKVISION warranty policy for details.
Available Now
The HIKVISION S-SERIES 96128NXI-S16R 128CH NVR is available for immediate purchase, ideal for large-scale commercial and industrial surveillance applications.
FAQ
Q: How many IP cameras does this NVR support?
A: It supports up to 128 IP cameras.
Q: What video output resolution does this NVR support?
A: The NVR supports video output up to 8K resolution.
For a smaller installation, a 64-channel NVR provides network video recording for systems with fewer camera connections.
A 32-channel NVR can support network video recording for expanded surveillance systems.
For compact surveillance installations, an 8-channel NVR provides network video recording with 4K HDMI output.
