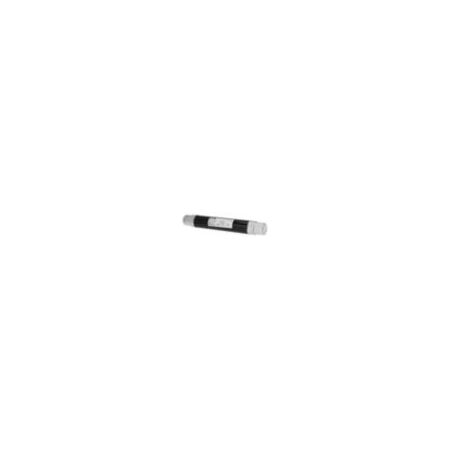

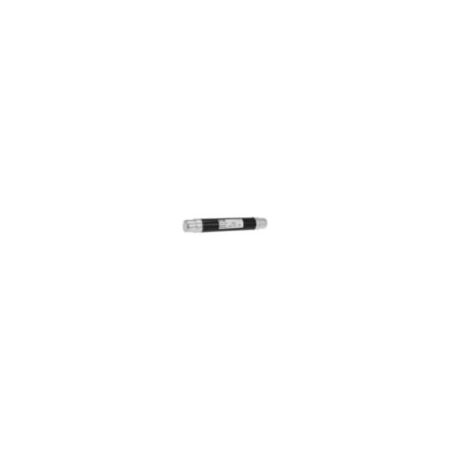

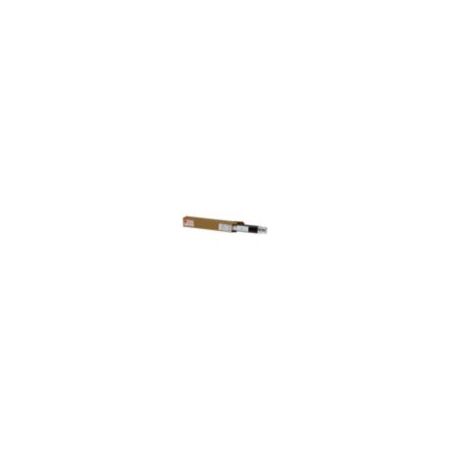

12kV DIN Fuse 20A | Brown Resin Seal | 63kA Breaking Capacity | Bolt-on Construction by Eaton
This 12kV DIN fuse with a 20A rating and brown resin seal is ideal for transformer protection in industrial settings. Featuring a 63kA breaking capacity and bolt-on construction, it ensures reliable performance and safety for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 12kV DIN Fuse 20A | Brown Resin Seal | 63kA Breaking Capacity | Bolt-on Construction by Eaton
Brand: Eaton
SKU: 12TDLEJ20
Alternatively Known As: 12kV DIN Fuse, 20 Amp Resin Seal Fuse, Medium Voltage Fuse, Transformer Protection Fuse
Technical Specifications
- Amperage Rating: 20 A
- Voltage Rating: 12 kV AC
- Fuse Size: 51 x 292 mm
- Breaking Capacity: 63 kA
- Fuse Indicator: With Striker
- Construction Type: Bolt-on
- Mounting Method: Clip-in
- Resistance: 39.1 Ohms
- Watt Losses: 18 W
- Rated Frequency: 50 Hz
- Class: Class back-up
- Fuse Type: TDLEJ
- Color: Brown
- Interrupt Rating: 63 kAIC
- Pre arc (I2T): 5.2 x 100
- Dimensions (H x L x W): 54mm x 292mm x 51mm
- Weight: 1.575 kg
Key Features
- Medium voltage DIN fuse with 20 A amperage rating
- 12 kV AC voltage rating
- Back-up fuse with striker indicator
- Bolt-on construction type with clip-in mounting method
- Breaking capacity of 63 kA
- Suitable for indoor or outdoor use
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with medium voltage equipment to ensure safety and compliance.
Applications
- Primary side transformer protection
- Transformer protection for indoor or outdoor use
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable resin seal construction reduces environmental contamination risk
- Long service life reduces waste and replacement frequency
Warranty Information
Warranty details available upon request from Eaton or authorized distributors.
Available Now
The Eaton 12KV 20Amp 2" DIN Brown Resin Seal Fuse is available now for immediate purchase. Ideal for transformer protection applications in industrial and utility settings.
