Trade Discount 17%

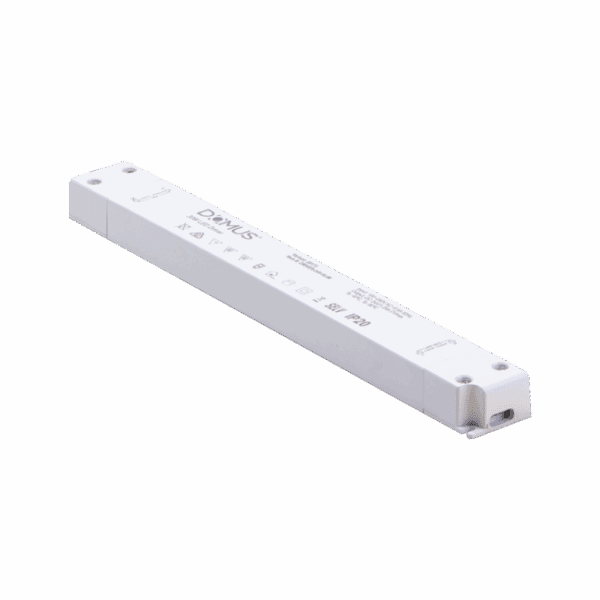

12V LED Driver 5-in-1 Dimmable Options Slim Design Domus Lighting
The 12V LED Driver with 5-in-1 dimming options is perfect for indoor LED strip lighting and profiles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12V LED Driver, 5-in-1 Dimmable LED Driver, Slim LED Driver, Constant Voltage LED Driver
Technical Specifications
- Input Voltage: 12V or 24V DC constant voltage
- Dimming Options: Triac, 0-10V, 1-10V, 10W PWM, Potentiometer
- Protection: Secondary side short circuit, thermal overload, over temperature, over voltage
- Wattage Options: 30W, 60W, 100W
- Indoor use only
- Includes 1 meter flex and plug
- Supports parallel wiring
- Dimensions (H x L x W): 30mm x 40mm x 150mm
- Weight: 0.3 kg
Key Features
- Slim linear design for easy installation
- 5-in-1 dimming options: Triac, 0-10V, 1-10V, 10W PWM, and Potentiometer
- Secondary side short circuit protection
- Thermal overload, over temperature, and over voltage protection
- Comes with 1 meter flex and plug
- Parallel wiring supported
- Fully Triac dimmable with suitable dimmers
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure safety and compliance with electrical standards.
Applications
- Indoor LED strip lighting
- LED profiles
- General indoor LED lighting requiring dimmable constant voltage drivers
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED driver reduces power consumption
- Dimmable functionality extends LED lifespan and reduces energy use
Warranty Information
5 Year replacement warranty.
Available Now
The Domus Lighting DRIVER 12V IP20 Linear 5 In 1 Dimmable LED Driver is available now for immediate purchase. Ideal for indoor LED strip and profile lighting applications.
