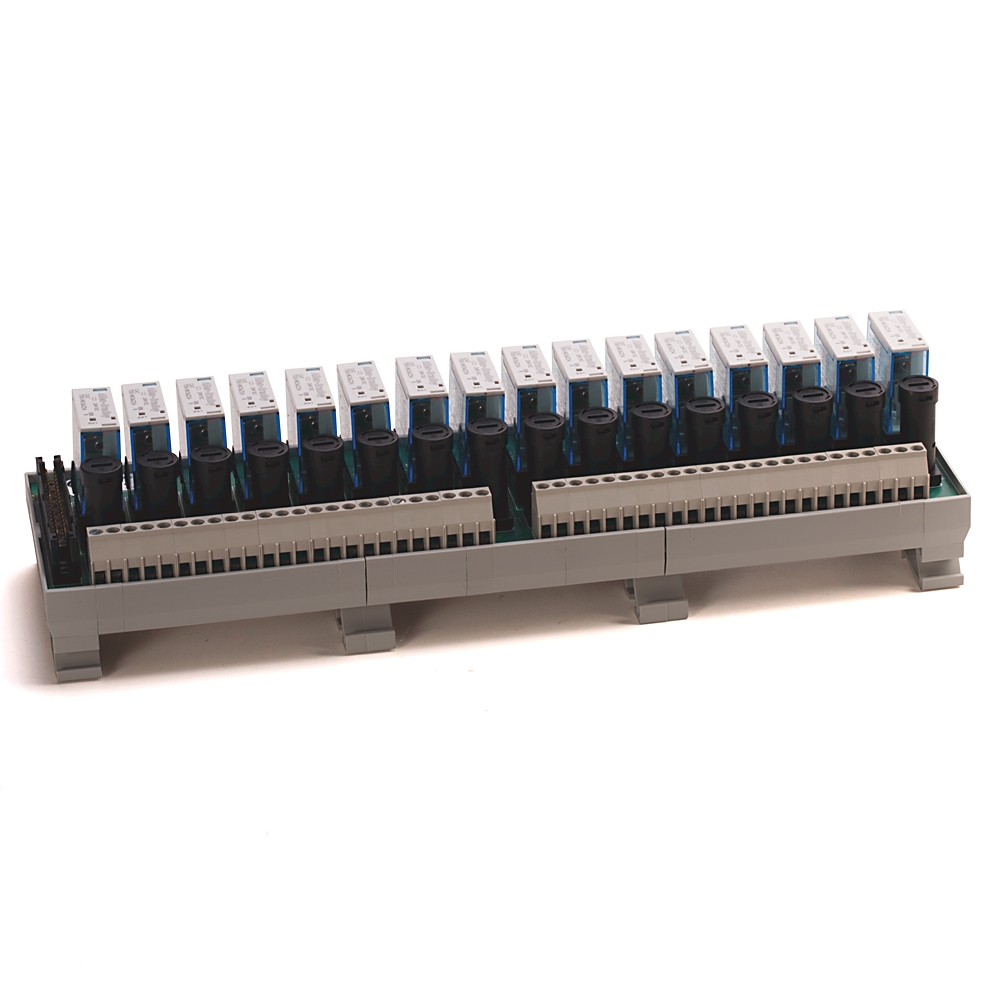

16 Channel Relay Module 40-Pin Configuration 24V DC Operation by Allen-Bradley

BRAND: Allen-Bradley
SKU: 1492XIM402416R
$1,293.20 List price: $1,611.50
+ −
30 Days Return Electricians Unlock Trade Access

Alternatively Known As: 16 Channel Relay Module, 40 Pin Relay Board, 24V DC Relay Module

Technical Specifications
  • Relay Count: 16
  • Pin Configuration: 40-pin
  • Operating Voltage: 24V DC
  • Type: Master relay module
  • Suitable for industrial automation
  • Dimensions (H x L x W): 25mm x 120mm x 100mm
  • Weight: 0.3 kg
Key Features
  • 40-pin configuration for multiple relay control
  • Operates at 24V DC
  • Contains 16 relays for extensive switching capabilities
  • Designed for reliable industrial use
Professional Installation Requirements
  • Installation should be performed by a qualified electrician or automation technician to ensure proper integration and safety.
Applications
  • Industrial automation control systems
  • Manufacturing process control
  • Electrical relay switching applications
  • PLC and control panel integration
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Low power consumption reduces energy usage in control systems
  • Durable design minimizes replacement frequency and waste
Warranty Information

1 year limited warranty covering manufacturing defects.

Available Now

The Allen-Bradley AB IFM Relay 40PIN Master 24V DC 16 Relay is available now for immediate purchase. Ideal for industrial automation and control panel applications.
