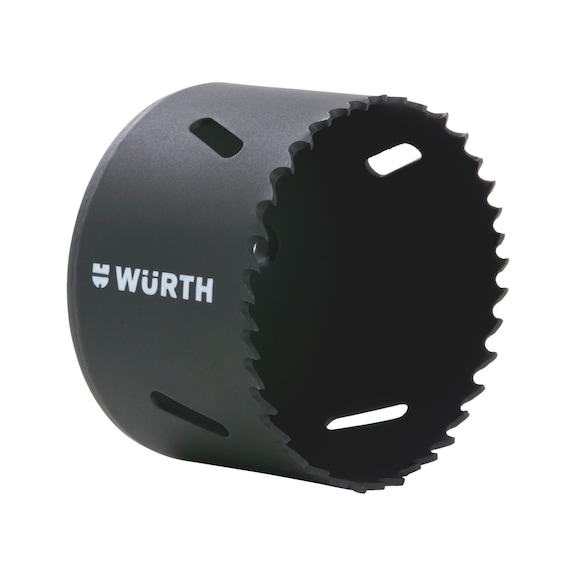

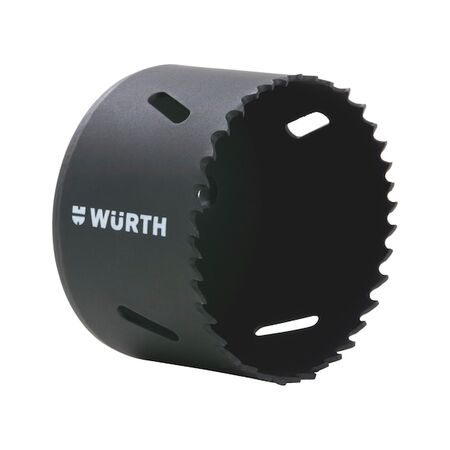

14mm High-Speed Steel Hole Saw | Fast Drilling Speed | Low-Vibration Operation | by Wurth
The 14mm High-Speed Steel Hole Saw is designed for precision drilling in steel and stainless steel materials. With extremely fast drilling speeds and low-vibration operation, it’s perfect for machining tasks that require accuracy and efficiency. Ideal for professional use with cordless drills and upright drilling machines, this hole saw ensures optimal performance with recommended rotation speeds for various materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 14 mm
- Cutting depth: 38 mm
- Drive type: Outer hexagon
- Suitable for cordless drills (points system): 3 of 4
- Suitable for drill (points system): 3 of 4
- Suitable for upright drilling machine (points system): 4 of 4
- Versatility (points system): 4 of 4
- Drilling speed (points system): 4 of 4
- Bore hole quality (points system): 2 of 4
- Recommended rotation speed in soft steel: 580 rpm
- Recommended rotation speed in tool steel and stainless steel: 300 rpm
- Recommended rotation speed in cast iron: 400 rpm
- Recommended rotation speed in brass: 790 rpm
- Recommended rotation speed in aluminium: 900 rpm
- Dimensions (H x L x W): 38mm x 38mm x 14mm
- Weight: 0.1 kg
Key Features
- Extremely fast drilling speed with minimal effort
- High concentricity and side stroke accuracy
- Very quiet and low-vibration operation up to 38 mm cutting depth
- Recommended rotation speeds for various materials to optimize performance
Professional Installation Requirements
- Professional use recommended for optimal performance and safety; ensure correct drill speed and equipment compatibility.
Applications
- Drilling precise holes in steel and stainless steel materials
- Suitable for use with cordless drills, upright drilling machines
- Ideal for machining tasks requiring fast and accurate hole cutting
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Efficient cutting reduces energy consumption during drilling
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
The Wurth 14mm High-Speed Steel Hole Saw is available now for immediate purchase. Ideal for machining and metalworking applications requiring precision and durability.
