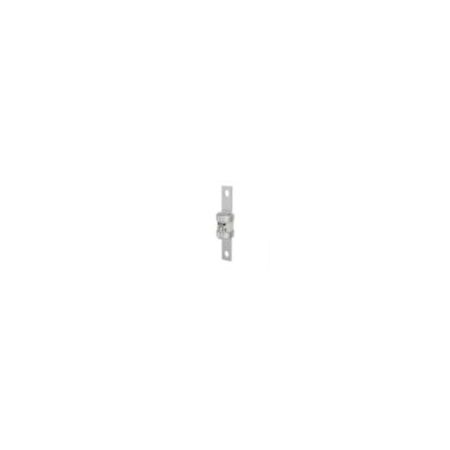

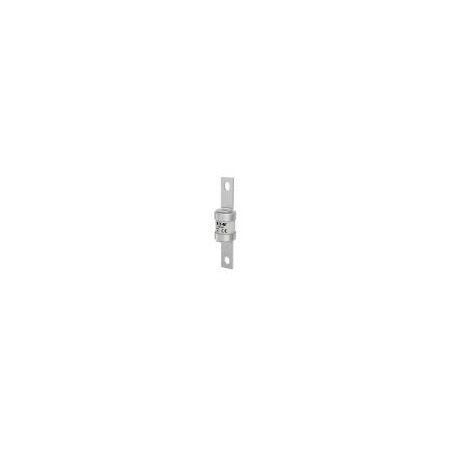

160A Industrial Fuse | 415V AC | 80 kA Breaking Capacity | gG/gL Class by Eaton
160A industrial fuse with a 415V AC rating and 80 kA breaking capacity—ideal for low voltage protection in industrial electrical systems. Built for reliable circuit protection, with secure centre bolted tags for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 160A Industrial Fuse | 415V AC | 80 kA Breaking Capacity | gG/gL Class by Eaton
Brand: Eaton
SKU: DD160
Alternatively Known As: 160A Industrial Fuse, 415V AC Fuse, BS88 Fuse, Low Voltage Fuse, Eaton DD160 Fuse
Technical Specifications
- Amperage Rating: 160 A
- Voltage Rating: 415 V AC
- Breaking Capacity: 80 kA
- Fuse Class: gG/gL
- Fuse Type: DD
- Construction: BS88/B2
- Dimensions: 31 mm x 31 mm x 136 mm
- Fitted with centre bolted tags
- Suitable for RS200 Red spot fuse holder
- Dimensions (H x L x W): 31mm x 136mm x 31mm
- Weight: 0.15 kg
Key Features
- 160A amperage rating for robust circuit protection
- 415V AC voltage rating suitable for industrial use
- Breaking capacity of 80 kA for high fault current interruption
- Class gG/gL fuse type for general purpose protection
- Centre bolted tags for secure fitting
- Complies with IEC 60269-2 and BS88 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse fitting.
Applications
- Industrial electrical systems requiring low voltage fuse protection
- Electrical panels and switchboards
- RS200 Red spot fuse holder compatible applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton's warranty policy for details.
Available Now
The Eaton 160AMP 415V AC Industrial Low Voltage British Standard Fuse is available now for immediate purchase. Ideal for industrial electrical protection applications.
