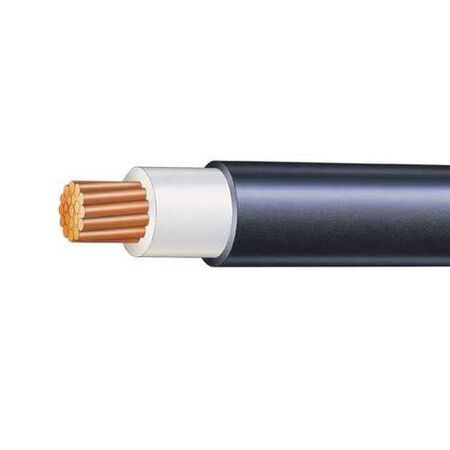

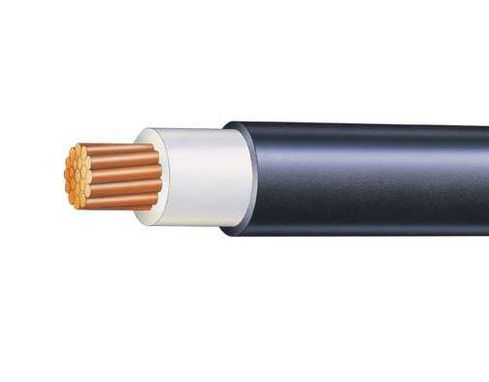

16MM XLPE Single Core Cable | Plain Annealed Copper Conductor | XLPE Insulation | PVC Sheath | by Electra Cables
The 16MM XLPE Single Core Cable is designed for reliable electrical installations, featuring a high-performance plain annealed copper conductor and superior XLPE X-90 insulation. Ideal for mains, sub-mains, and industrial plant setups, this robust cable ensures excellent conductivity and thermal resistance, making it perfect for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 16mm XLPE Single Core Cable, 16mm Black XLPE Cable, 16mm XLPE Insulated Electrical Cable
Technical Specifications
- Conductor: Plain annealed copper
- Insulation: XLPE X-90
- Sheath: PVC 5V-90
- Voltage Rating: 0.6/1kV
- Temperature Rating: Max 90°C
- Length: 100 meters
- Colour: Black
- Dimensions (H x L x W): 16mm x 100000mm x 16mm
- Weight: 20.8 kg
Key Features
- High-performance plain annealed copper conductor for excellent conductivity
- XLPE X-90 insulation for superior thermal resistance
- Robust PVC 5V-90 sheath for environmental protection
- Rated for 0.6/1kV voltage
- Operates at a maximum temperature of 90°C
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with safety standards and optimal performance.
Applications
- Mains, sub-mains, and sub-circuits in buildings
- Industrial plant electrical installations
- Unenclosed setups, conduit installations
- Direct burial and underground ducts
Standards & Compliance
- AS/NZS 1125 – Conductors of insulated cables
- AS/NZS 3808 – Polymeric insulated cables for working voltages up to and including 0.6/1kV
- AS/NZS 5000.1 – Electric cables – Polymeric insulated – For working voltages up to and including 0.6/1kV
Environmental Benefits
- Durable insulation reduces cable replacement frequency, minimizing waste
- Efficient conductivity reduces energy loss during transmission
Warranty Information
Warranty details available upon request from Electra Cables.
Available Now
The 16mm S/CORE XLPE BLK Cable by Electra Cables is available for immediate purchase, ideal for industrial and building electrical installations.
