Trade Discount 42%

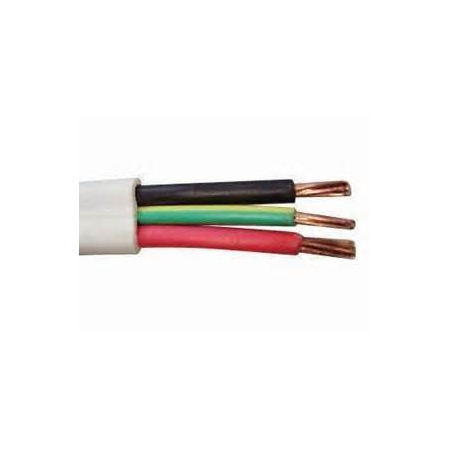

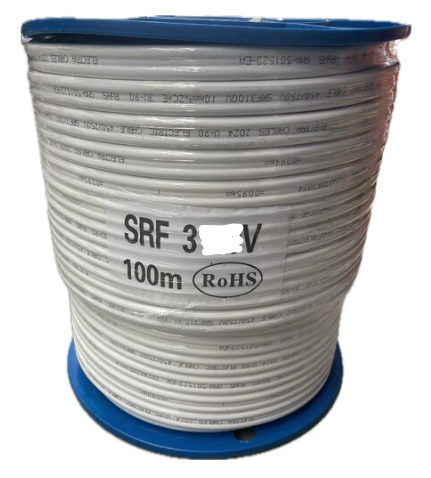

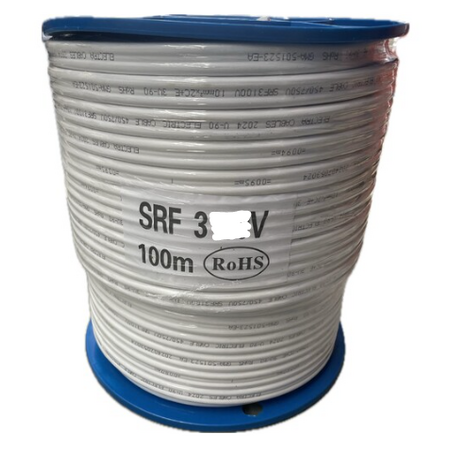

2.5mm Twin and Earth Cable | 450/750V | 100M Drum
Electra Cables 2.5mm Twin and Earth Cable with 450/750V rating on a 100m drum, featuring LSZH insulation and sheath, suitable for general wiring in domestic, commercial, and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Twin and Earth Cable, TPS Cable, 2.5mm² Twin Core Cable, Electrical Wiring Cable
Technical Specifications
- Conductor: Plain annealed copper (AS/NZS 1125)
- Insulation: X-HF-90, 90°C LSZH
- Sheath: X-HF-90, 90°C LSZH
- Voltage Rating: 450/750V
- Standard: AS/NZS 5000.2
- Normal Operating Temperature: 75°C
- Dimensions (H x L x W): 3mm x 100000mm x 10mm
- Weight: 13.8 kg
Key Features
- Flat TPS Cable design
- Low Smoke Zero Halogen (LSZH) insulation and sheath
- Plain annealed copper conductor compliant with AS/NZS 1125
- X-HF-90 insulation and sheath rated for 90°C
- Standard compliance with AS/NZS 5000.2
- Normal operating temperature of 75°C
- Easy-peel sheath for ease of installation
Professional Installation Requirements
- Installation should be performed by a licensed electrician following local electrical codes and standards.
Applications
- General wiring in domestic, commercial, and industrial installations
- Unenclosed wiring
- Closed in conduit
- Buried direct or in underground ducts where not subject to mechanical damage
Standards & Compliance
- AS/NZS 5000.2 – Electric cables – Polymeric insulated
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) materials reduce toxic emissions in case of fire
Warranty Information
Warranty as per Electra Cables standard terms and conditions.
Available Now
Available for immediate purchase, ideal for domestic, commercial, and industrial electrical wiring applications.
