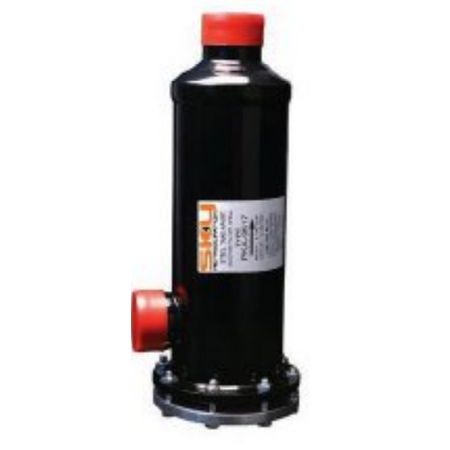

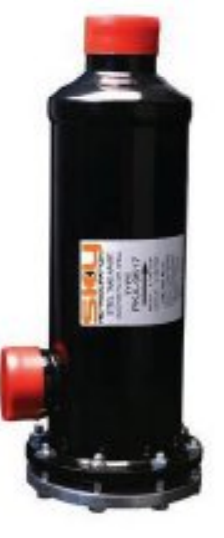

2 Core - 3 1/8 SOL Pressure Vessel Filter Drier | High Pressure & Anti-Corrosion | by Aspen Pumps
The 2 Core - 3 1/8 SOL Pressure Vessel Filter Drier is designed for HVAC systems requiring high-pressure filtration. With a robust double plated steel end plate and solid copper connections, it ensures durability and ease of installation. Ideal for commercial and industrial refrigeration, this filter drier supports efficient operation and is compatible with R-410a refrigerant, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2 Core - 3 1/8 SOL Pressure Vessel Filter Drier | High Pressure & Anti-Corrosion | by Aspen Pumps
Brand: Aspen Pumps
SKU: 302-5002
Alternatively Known As: Pressure Vessel Filter Drier Shell, HVAC Filter Drier, Refrigeration Pressure Vessel
Technical Specifications
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4,380 kPa
- Connection size: 3 1/8 inch
- Length: 285 mm
- Double plated steel end plate with stainless steel bolts
- Anti-corrosion powder coat finish
- Solid copper connections
- Large secondary mesh filter for particulate removal with minimal pressure drop

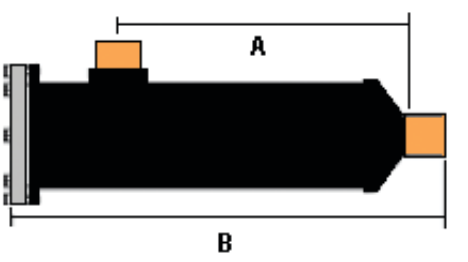

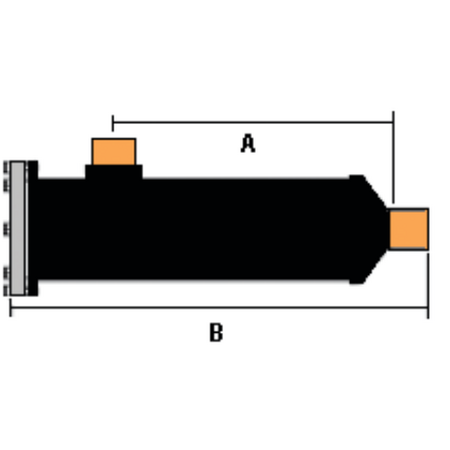

- Dimensions (H x L x W): 285mm x 80mm x 80mm
- Weight: 3.5 kg
Key Features
- Handles high pressures of R-410a standard and is CO2 upgradeable
- Double plated steel end plate with stainless steel bolts for extended service life
- Anti-corrosion powder coat finish
- Solid copper connections for ease of installation and increased service life
- Large secondary mesh filter enabling particulate removal with minimal pressure drop
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician to ensure system integrity and compliance with safety standards.
Applications
- HVAC systems requiring high-pressure filter and drier shells
- Commercial and industrial refrigeration systems
- Systems using R-410a refrigerant and CO2 upgradeable setups
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and performance
Environmental Benefits
- Supports efficient refrigeration system operation reducing energy consumption
- Corrosion resistance extends product life reducing waste
- Enables use with environmentally friendly refrigerants like R-410a and CO2
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
The Aspen SKY Pressure Vessel 2 Core - 3 1/8 SOL is available for immediate purchase, ideal for commercial and industrial refrigeration and HVAC applications.
