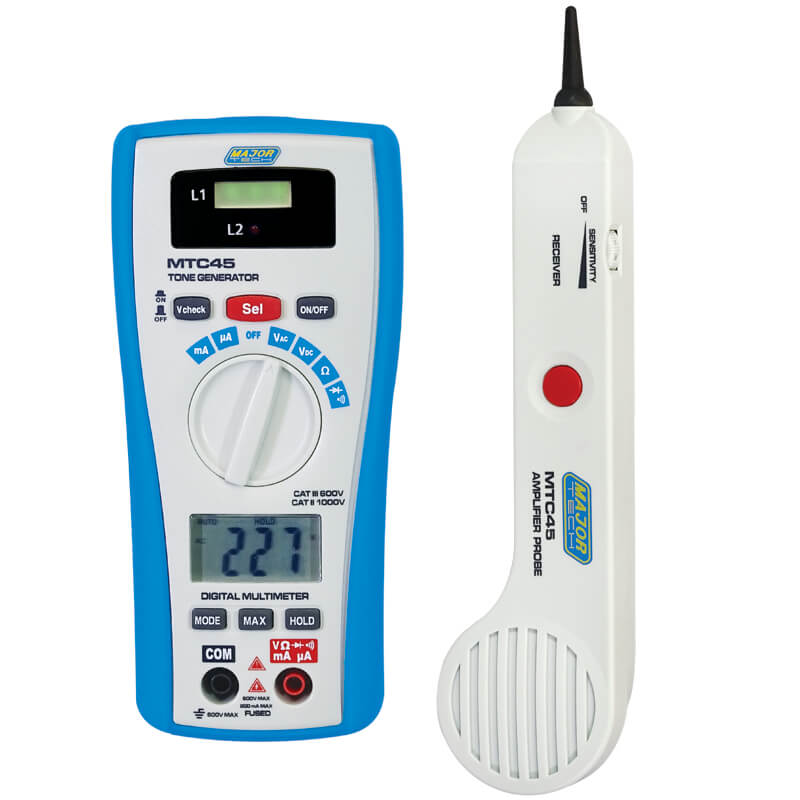

2-In-1 Tone and Probe Multimeter | 1V-600V AC Voltage | Auto-Ranging | Wire Trace by Majortech
The 2-in-1 tone and probe multimeter offers an AC voltage range of 1V-600V and auto-ranging capabilities—ideal for telecommunications and electrical testing. Built for qualified technicians, it features wire tracing, continuity testing, and comes with crocodile clips for easy connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2-In-1 Tone and Probe Multimeter | 1V-600V AC Voltage | Auto-Ranging | Wire Trace by Majortech
Brand: Majortech
SKU: MTC45
Alternatively Known As: Tone Generator and Probe Multimeter, Telecom Line Tester, Digital Multimeter with Tone and Probe
Technical Specifications
- AC Voltage Range: 1V – 600V, Resolution: 1mV, Accuracy: ±(1.0% + 5 digits)
- DC Current Range: 200.0µA – 200.0mA, Resolution: 0.1µA, Accuracy: ±(1.5% + 3 digits)
- AC Current Range: 200.0µA – 200.0mA, Resolution: 0.1µA, Accuracy: ±(1.8% + 8 digits)
- Resistance Range: 200.0Ω – 20MΩ, Resolution: 0.1Ω, Accuracy: ±(1.2% + 3 digits)
- Functions: Wire trace, continuity test, clear/busy/ringing line test, tip/ring identification, diode test, continuity buzzer
- Dimensions (H x L x W): 80mm x 40mm x 150mm
- Weight: 0.3 kg
Key Features
- 2-in-1 device combining tone and probe generator with auto-ranging digital multimeter
- Wire trace, continuity test, clear/busy/ringing line test, and tip/ring identification
- Supplied with crocodile clips for non-terminated cables and modular connectors for direct telephone and internet wiring connections
- Auto-ranging digital multimeter functions including AC/DC volts, AC/DC current, resistance, diode test, and continuity buzzer
Professional Installation Requirements
- Recommended to be used by qualified technicians or electricians for accurate testing and safety.
Applications
- Wire tracing and fault finding in telecommunications and internet wiring
- Continuity testing in electrical circuits
- Line testing for telephone and internet lines
- Tip and ring identification in telecommunication cables
- Measurement of AC/DC voltage, current, resistance, and diode testing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces need for multiple devices, minimizing electronic waste
- Energy-efficient auto-ranging multimeter reduces power consumption
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech 2-In-1 Tone and Probe and Multimeter MTC45 is available now for immediate purchase. Ideal for telecommunications, electrical testing, and specialist industry applications.
