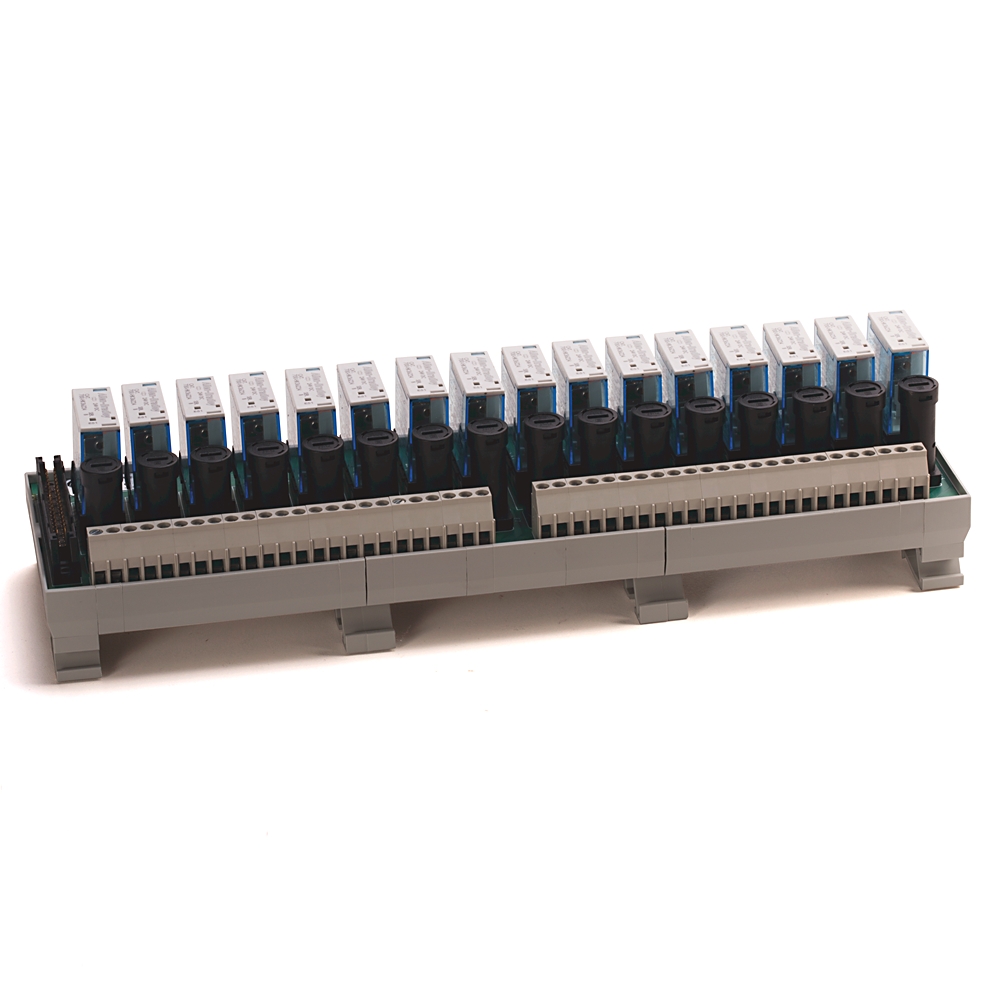

20-Pin Fusible Master Relay 120V AC 16 Relay Design by Allen-Bradley
The 20-Pin Fusible Master Relay operates at 120V AC and features 16 relays for versatile switching functions, making it ideal for industrial automation control systems. Designed for enhanced circuit protection, this relay module is perfect for electrical relay control panels and machinery requiring reliable switching. Ensure professional installation for optimal performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 20 Pin Fusible Master Relay, 120V AC Relay Module, Allen-Bradley IFM Relay
Technical Specifications
- Pin Count: 20
- Voltage Rating: 120V AC
- Relay Quantity: 16
- Fusible master relay type for enhanced circuit protection
- Dimensions (H x L x W): 80mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- 20-pin fusible master relay design
- Operates at 120V AC
- Contains 16 relays for multiple switching functions
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial automation control systems
- Electrical relay control panels
- Machinery and equipment requiring relay switching
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste.
Warranty Information
1 year limited warranty covering manufacturing defects.
Available Now
The Allen-Bradley AB IFM Relay 20PIN Fusible Master 120V AC 16 Relay is available now for immediate purchase. Ideal for industrial and commercial electrical control applications.
