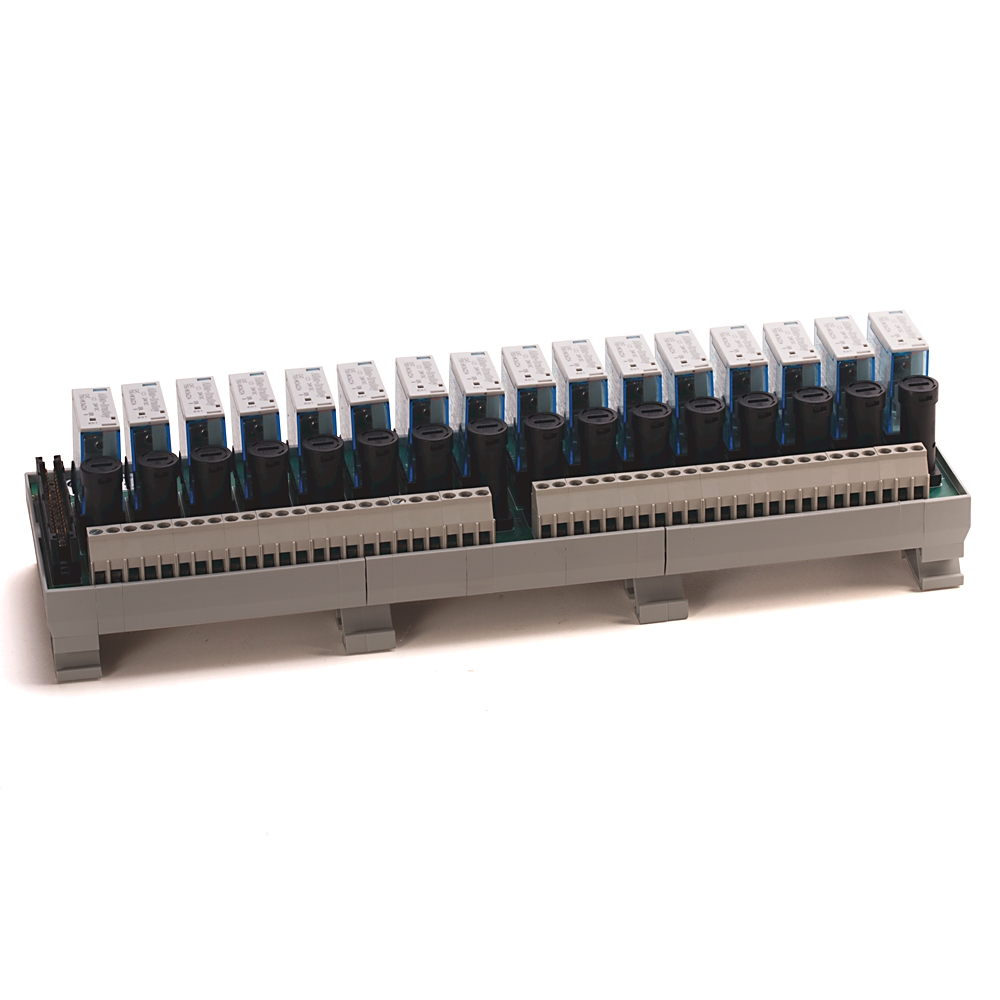

20 Pin Relay Module 24V DC 16 Relays for Industrial Control by Allen-Bradley
The 20 Pin Relay Module operates at 24V DC and features 16 relays, making it ideal for industrial automation and control systems. Designed for reliable performance in demanding environments, this master relay module ensures versatile connectivity and efficient switching operations, perfect for manufacturing process control and electrical relay applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 20 Pin Relay Module, 24V DC Relay Board, Industrial Relay Module
Technical Specifications
- Pin Count: 20
- Operating Voltage: 24V DC
- Number of Relays: 16
- Type: Master Relay Module
- Suitable for industrial control applications
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- 20-pin configuration for versatile connectivity
- Operates at 24V DC
- Contains 16 relays for multiple switching operations
- Reliable and durable for industrial environments
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper integration and safety.
Applications
- Industrial automation control systems
- Manufacturing process control
- Electrical relay switching applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in control systems
- Durable design minimizes waste and replacement frequency
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley AB IFM Relay 20PIN Master 24V DC 16 Relay is available for immediate purchase, ideal for industrial automation and control system applications.
